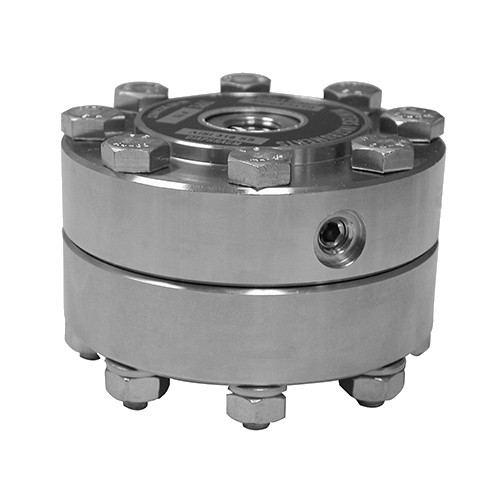

WINTER D74954M D74 SERIES LOWER MONEL 1/4" NPTF 30"/0/30 PSI
(No reviews yet)
Write a Review
Write a Review
U.S. Winter instruments
WINTER D74954M D74 SERIES LOWER MONEL 1/4" NPTF 30"/0/30 PSI
$1,505.62
- Brand
- U.S. Winter instruments
- SKU:
- D74954M
- UPC:
- 6.28311E+11
- Availability:
- In Stock
Winters, D74954M, D74 Series 2-Piece Industrial Seal, Lower Monel Housing, 1/4" NPTF Connection
Features:
- Two piece construction and designed to withstand even the most severe process applications
- "Continuous use" seals - backing plate will prevent diaphragm from rupturing if pressure sensing instrument fails. Pressure will be held until instrument is replaced
- Standard diaphragm is constructed of AISI 316 stainless steel and welded to the upper chamber of the seal
- ASME B40.100 compliant
Application:
- Where the media is low in pressure and the process fluid is corrosive or viscous and would clog instrument internals/solidify within the pressure gauge, switch or transmitter
| Housing | Monel? |
| Diaphragm | Monel? |
| Construction | Two Piece Construction |
| Gasket Material | Buna-N |
| Connection | Bottom: 1/4" NPTF |
| Process Temperature | -22?F to 212?F (-30?C to 100?C) |
| Flushing | No |
