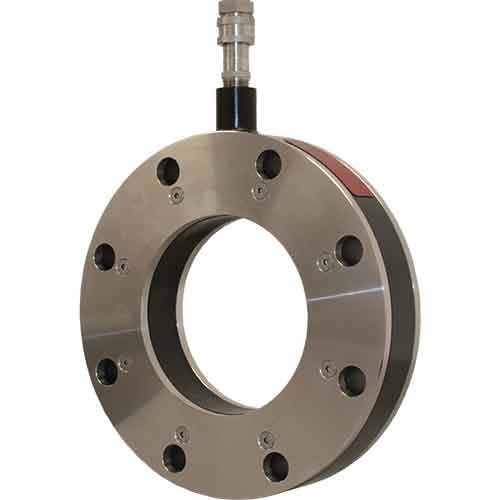

WINTER D81RIR2SSVSF2N D81 FLANGE SENSOR, 2", SS CENTRE, VITON, SS PLATES, FILLED, SS WINCONNECT, 1/2" NPT, 150#
(No reviews yet)
Write a Review
Write a Review
U.S. Winter instruments
WINTER D81RIR2SSVSF2N D81 FLANGE SENSOR, 2", SS CENTRE, VITON, SS PLATES, FILLED, SS WINCONNECT, 1/2" NPT, 150#
$6,755.89
- Brand
- U.S. Winter instruments
- SKU:
- D81RIR2SSVSF2N
- UPC:
- 6.28311E+11
- Availability:
- In Stock
Description:
Winters, D81RIR2SSVSF2N-300#, D81 Flanged Sensor, 2", SS, SS, V, SF, 1/2" NPTF, 300#
This isolation ring is ideal for measuring pressures of viscous or slurry media, utilizing a flow-through system that eliminates clogging or pressure blocking from occurring. Designed for installation in water treatment facilities, mining and pulp & paper plants.
Features:
- Unique WinCONNECT fitting allows for easy field removal of gauge or switch for calibration, repair or replacement without interrupting process flow
- Thicker break-resistant instrument stem
- Optional tees for installation of multiple instruments
- ASME B40.100 compliant
Specification
| Sensor Type | RIR | Full flange (300# optional) |
| Pipe I.D. | 2" | Vacuum to 1,000 psi |
| Centre Section | S | Stainless Steel |
| End Plates | S | Stainless Steel |
| Elastomer (Sleeve) | V | Fluoroelastomer (Viton) |
| Fill Fluid | SF | Silicone (standard) |
| Instrument Connection | 2N | 1/2" NPTF |
