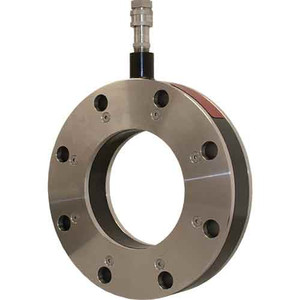

WINTER D81RIR30SSESF2N D81 FLANGE SENSOR, 30", SS CENTRE, EPDM, SS PLATES, FILLED, SS WINCONNECT, 1/2" NPT, 150#
(No reviews yet)
Write a Review
Write a Review
U.S. Winter instruments
WINTER D81RIR30SSESF2N D81 FLANGE SENSOR, 30", SS CENTRE, EPDM, SS PLATES, FILLED, SS WINCONNECT, 1/2" NPT, 150#
$145,946.94
- Brand
- U.S. Winter instruments
- SKU:
- D81RIR30SSESF2N
- UPC:
- 6.28311E+11
- Availability:
- In Stock
Description:
D81RIR30SSESF2N-300#, D81, Isolation Ring, Flanged Sensor, Full Flange 300# Optional, 30", Stainless Steel, Stainless Steel, EPDM (Nordel) (-20?F to 300?F), Silicone (standard), 1/2" NPTF
This isolation ring is ideal for measuring pressures of viscous or slurry media, utilizing a flow-through system that eliminates clogging or pressure blocking from occurring. Designed for installation in water treatment facilities, mining and pulp & paper plants.
Features:
- Unique WinCONNECT fitting allows for easy field removal of gauge or switch for calibration, repair or replacement without interrupting process flow
- Thicker break-resistant instrument stem
- Optional tees for installation of multiple instruments
- ASME B40.100 compliant
Specification
| Sensor Type | RIR | Full flange (300# optional) |
| Pipe I.D. | 30" | Vacuum to 1,000 psi |
| Centre Section | S | Stainless Steel |
| End Plates | S | Stainless Steel |
| Elastomer (Sleeve) | E | EPDM (Nordel) (-20?F to 300?F) |
| Fill Fluid | SF | Silicone (standard) |
| Instrument Connection | 2N | 1/2" NPTF |
