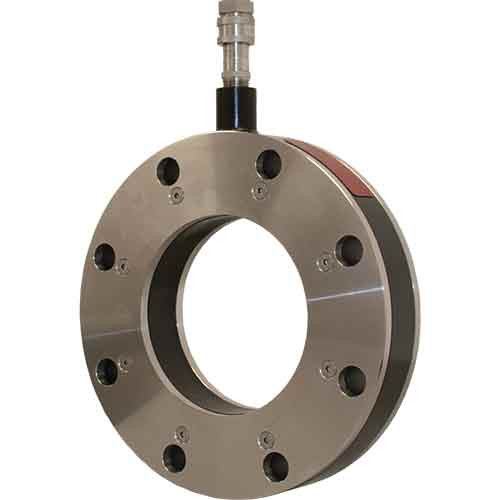

WINTER D81RIR3CCVSF2N D81 FLANGE SENSOR, 3", CS CENTRE, VITON, CS PLATES, FILLED, SS WINCONNECT, 1/2" NPT, 150#
(No reviews yet)
Write a Review
Write a Review
U.S. Winter instruments
WINTER D81RIR3CCVSF2N D81 FLANGE SENSOR, 3", CS CENTRE, VITON, CS PLATES, FILLED, SS WINCONNECT, 1/2" NPT, 150#
$3,928.34
- Brand
- U.S. Winter instruments
- SKU:
- D81RIR3CCVSF2N
- UPC:
- 6.28311E+11
- Availability:
- In Stock
Winters, D81RIR3CCVSF2N, D81 Flanged Sensor, 3", CS, CS, V, SF, 1/2" NPTF, 150#
D81, Isolation Ring, Flanged Sensor, Full Flange 150# Standard, 3", Carbon Steel, Fluoroelastomer (Viton), Silicone (standard), 1/2" NPTF
This isolation ring is ideal for measuring pressures of viscous or slurry media, utilizing a flow-through system that eliminates clogging or pressure blocking from occurring. Designed for installation in water treatment facilities, mining and pulp & paper plants.
Features:
- Unique WinCONNECT fitting allows for easy field removal of gauge or switch for calibration, repair or replacement without interrupting process flow
- Thicker break-resistant instrument stem
- Optional tees for installation of multiple instruments
- ASME B40.100 compliant
| Sensor Type | RIR | Full flange (150# standard) |
| Pipe I.D. | 3" | Vacuum to 1,000 psi |
| Centre Section | C | Carbon Steel |
| End Plates | C | Carbon Steel |
| Elastomer (Sleeve) | V | Fluoroelastomer (Viton) |
| Fill Fluid | SF | Silicone (standard) |
| Instrument Connection | 2N | 1/2" NPTF |
