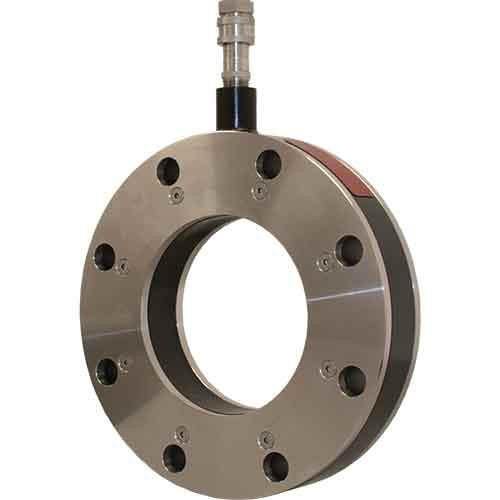

WINTER D81WIR16CCRSF2N D81 WAFER SENSOR, 16", CS CENTRE, NATURAL RUBBER, CS PLATES, FILLED, SS WINCONNECT, 1/2" NPT
(No reviews yet)
Write a Review
Write a Review
U.S. Winter instruments
WINTER D81WIR16CCRSF2N D81 WAFER SENSOR, 16", CS CENTRE, NATURAL RUBBER, CS PLATES, FILLED, SS WINCONNECT, 1/2" NPT
$8,435.18
- Brand
- U.S. Winter instruments
- SKU:
- D81WIR16CCRSF2N
- UPC:
- 6.28311E+11
- Availability:
- In Stock
Description:
Winters, D81WIR16CCRSF2N, D81 Wafer Sensor, 16", CS, CS, R, SF, 1/2" NPTF
This isolation ring is ideal for measuring pressures of viscous or slurry media, utilizing a flow-through system that eliminates clogging or pressure blocking from occurring. Designed for installation in water treatment facilities, mining and pulp & paper plants.
Features:
- Unique WinCONNECT fitting allows for easy field removal of gauge or switch for calibration, repair or replacement without interrupting process flow
- Thicker break-resistant instrument stem
- Optional tees for installation of multiple instruments
- ASME B40.100 compliant
Specification
| Sensor Type | WIR | Wafer, Nests Inside Bolt Circle |
| Pipe I.D. | 16" | Vacuum to 1,000 psi |
| Centre Section | C | Carbon Steel |
| End Plates | C | Carbon Steel |
| Elastomer (Sleeve) | R | Natural Rubber |
| Fill Fluid | SF | Silicone (standard) |
| Instrument Connection | 2N | 1/2" NPTF |
