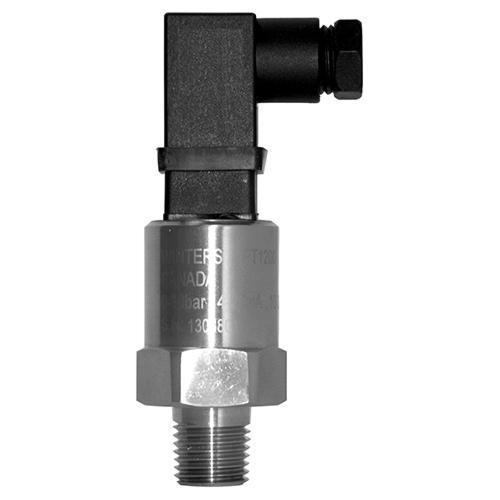

WINTER LE100601 LE1 SERIES, 30"/0/60 PSI, 0.5/4.5VDC, MICRO-DIN, 304 SS, CERAMIC, 1/4" NPT, 0.5%
(No reviews yet)
Write a Review
Write a Review
U.S. Winter instruments
WINTER LE100601 LE1 SERIES, 30"/0/60 PSI, 0.5/4.5VDC, MICRO-DIN, 304 SS, CERAMIC, 1/4" NPT, 0.5%
$159.70
- Brand
- U.S. Winter instruments
- SKU:
- LE100601
- UPC:
- 6.28311E+11
- Availability:
- In Stock
Features:
- Developed for OEM applications.
- Compact stainless steel construction with ceramic sensor
- Zero and span adjustment option available
- ?0.5% accuracy (?1% for pressures ?45 psi)
- IP65 and IP67 enclosure ratings
- CE approved
Applications:
- Suitable for a variety of applications including pump and compressor monitoring, refrigeration and HVAC
| Output Signal | 3-wire: 0.5-4.5 Vdc / Vs = 10-30 Vdc / Vac |
| Accuracy | ?0.5% FSO (?1% FSO for pressures ? 45 psi (3 bar)) |
| Response Time | <10 ms |
| Insulation | >100 M? at 50V |
| Permissible Temperatures | Operating: -40?F to 212?F (-40?C to 100?C) (185?F (85?C) maximum zero span); Compensating: 14?F to 176?F (-10?C to 80?C) (158?F (70?C) maximum zero span) |
| Pressure Port / Housing | 304 SS |
| Wetted Parts | Seals: NBR; Diaphragm: Ceramic |
| Current Consumption | 3-wire voltage: 5 mA (short-circuit current 20 mA) |
| EMC | EMI: EN50081-1/-2; EMS: EN50082-2 |
| Stability | Vibration: 10 g / 5 Hz to 200 Hz; Shock: 20 g / 11 ms |
| Operation Life | 2 M cycles |
| Approval | CE |
| Over-pressure | 75 psi |
| Burst Pressure | 150 psi |
| Range | 30"/0/60 psi |
