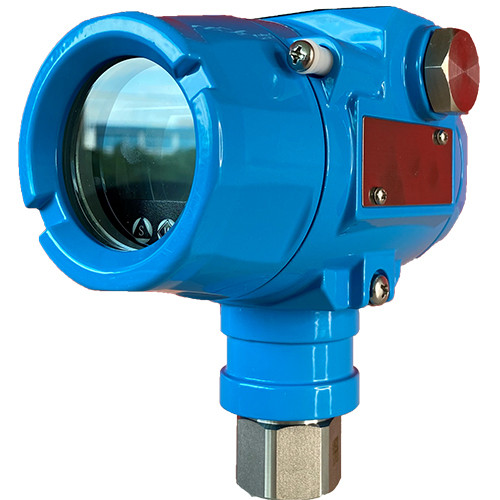

Winter LY16P12RX WinSMART LY16 PRESSURE TRANSMITTER, 4/20MA + HART OUTPUT

(No reviews yet) Write a Review

$1,655.42

Current Stock:

Quantity:

Adding to cart… The item has been added

Winters, LY16P12RX, Winsmart? LY16 Series Smart Explosion Proof Pressure Transmitter, -14.5/0/5,000 PSI Pressure Range, Modbus RS485 Output

Features:

Microprocessor-based high performing transmitter
Explosion proof smart pressure transmitter for hazardous locations
Built-in temperature sensor
0.2% standard
Simple to operate 3-push button control
Re-zero fuction for safe field calibration
Wide range of accuracies and turndown ratios allow for installation in any application setting
CRN Pending

Application:

Pressure monitoring for oil and gas, well head process control, petrochemical installations, power generation equipment and all hazardous locations

Output Signal	Modbus, 4-wire / V = 9-30 Vdc
Pressure Range	-14.5/0/5,000 PSI
Smallest Calibration Span	2466 PSI
Low Range Limit (LRL)	-14.5 PSI
Upper Range Limit (URL)	5076 PSI
Overload Limit	7614.5
LCD Display	LCD display (standard)
Accuracy	0.2% standard
Stability	0.1% per year
Temperature Range	Working: -40/85?C (with display -20/70?C), -40/185?F (without display -4/158?F) Storage: -40/110?C (with display -40/85?C), -40/230?F (without display -40/185?F) Media: silicone oil filling: -40/120?C (-40/248?F)
Working Humidity	5-100% at 40?C (104?F)
Pressure Connection	1/2? NPTM (standard)
Housing	Rugged die-cast aluminum housing, painted blue
Wetted Parts	316L SS
Overload Pressure	1.5 x rated pressure
Power Consumption	</- 500 mW at 24 VDC, 20.8 mA
Vibration	20g, 20Hz?5kHz According to GB/T 1827.3 / IEC 61298-3 tests, <0.1% URL
Shock	20g, 20Hz?5kHz
Pressure Units	kPa, Mpa, bar, psi, mmHg, mmH2O, mH2O, inH2O, ftH2O, inHg, mHg, TORR, mbar, g/cm2, kg/cm2, Pa, ATM
Temperature Units	Celsius, Fahrenheit
Protection Class	EMI, ESD, RFI, reverse polarity protected
Approvals	CSA, for USA & Canada - Class I, Division 1, Group A,B,C and D T6 \| Class II, Division 1 Group E, F and G T80oC \| Class III Intertek, for USA & Canada - Class I, Zone 0 A Ex ia IIC T6 Gb \| Class I, Division 1, Group A-D, T6 \| ? 40oC to 60oC
Protection Class	IP66 / IP67
Weight	2.9 lbs (1.3 kg)
Operational Life	100 million cycles
Dimensions	133 x 131 x 130mm
