WINTER LY16P15HX LY16 SERIES, -14.5/0/10,000 PSI, 4/20MA+HART, 0.2%, 316L WELDED, SILICONE FILLED, 1/2" NPT 316SS PROCESS, CABLE ENTRY 1/2" NPT FLAME PROOF, LCD DISPLAY

WINTER LY16P15HX LY16 SERIES, -14.5/0/10,000 PSI, 4/20MA+HART, 0.2%, 316L WELDED, SILICONE FILLED, 1/2" NPT 316SS PROCESS, CABLE ENTRY 1/2" NPT FLAME PROOF, LCD DISPLAY

(No reviews yet) Write a Review
$1,655.42
Brand
SKU:
LY16P15HX
UPC:
628311321654
Availability:
In Stock

Adding to cart… The item has been added
Add to Wish List

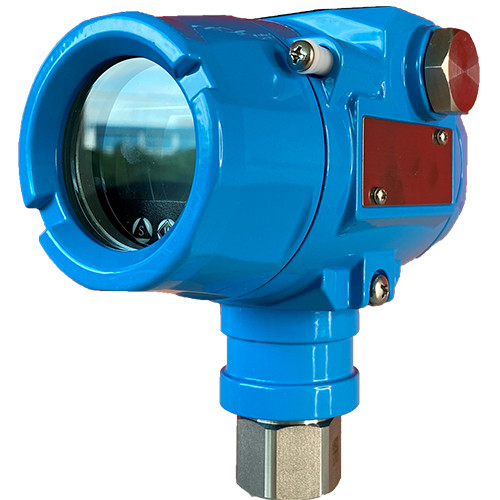

Winters, LY16P15HX, Winsmart? LY16 Series Smart Explosion Proof Pressure Transmitter, -14.5/0/10,000 PSI Pressure Range, 4/20mA+HART Output

Features:

  • Microprocessor-based high performing transmitter
  • Explosion proof smart pressure transmitter for hazardous locations
  • Built-in temperature sensor
  • 0.2% standard
  • Simple to operate 3-push button control
  • Re-zero fuction for safe field calibration
  • Wide range of accuracies and turndown ratios allow for installation in any application setting
  • CRN Pending

Application:

  • Pressure monitoring for oil and gas, well head process control, petrochemical installations, power generation equipment and all hazardous locations

Output Signal4/20 mA + HART, 2-wire / V = 16.5-55 Vdc
Pressure Range-14.5/0/10,000 PSI
Smallest Calibration Span5076 PSI
Low Range Limit (LRL)-14.5 PSI
Upper Range Limit (URL)10152.6 PSI
Overload Limit15229
LCD DisplayLCD display (standard)
Accuracy0.2% standard
Stability0.1% per year
Temperature Range
  • Working: -40/85?C (with display -20/70?C), -40/185?F (without display -4/158?F)
  • Storage: -40/110?C (with display -40/85?C), -40/230?F (without display -40/185?F)
  • Media: silicone oil filling: -40/120?C (-40/248?F)
Working Humidity5-100% at 40?C (104?F)
Pressure Connection1/2? NPTM (standard)
HousingRugged die-cast aluminum housing, painted blue
Wetted Parts316L SS
Overload Pressure1.5 x rated pressure
Power Consumption</- 500 mW at 24 VDC, 20.8 mA
Vibration
  • 20g, 20Hz?5kHz
  • According to GB/T 1827.3 / IEC 61298-3 tests, <0.1% URL
Shock20g, 20Hz?5kHz
Pressure UnitskPa, Mpa, bar, psi, mmHg, mmH2O, mH2O, inH2O, ftH2O, inHg, mHg, TORR, mbar, g/cm2,
kg/cm2, Pa, ATM
Temperature UnitsCelsius, Fahrenheit
Protection ClassEMI, ESD, RFI, reverse polarity protected
Approvals
  • CSA, for USA & Canada - Class I, Division 1, Group A,B,C and D T6 | Class II, Division 1 Group E, F and G T80oC | Class III
  • Intertek, for USA & Canada - Class I, Zone 0 A Ex ia IIC T6 Gb | Class I, Division 1, Group A-D, T6 | ? 40oC to 60oC
Protection ClassIP66 / IP67
Weight2.9 lbs (1.3 kg)
Operational Life100 million cycles
Dimensions133 x 131 x 130mm
