WINTER PFD20218 PFD COMPACT 0/500 PA NYLON HOUSING 3/16? BARBED CONNECTION ?5% ACC
(No reviews yet)
Write a Review
Write a Review
U.S. Winter instruments
WINTER PFD20218 PFD COMPACT 0/500 PA NYLON HOUSING 3/16? BARBED CONNECTION ?5% ACC
$174.00
- Brand
- U.S. Winter instruments
- SKU:
- PFD20218
- UPC:
- 6.28311E+11
- Availability:
- In Stock

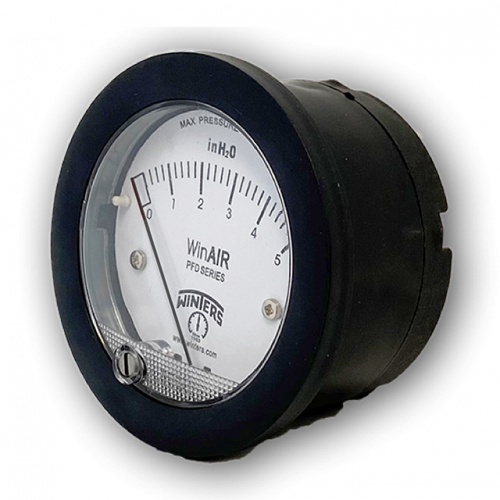

Winters, PFD20218, PFD WinAIR Compact Differential Gauge, 0/500 PA Range
Features:
- Resistance-free differential gauge for all air and non-corrosive gas installations
- Compact size and easy to read dial
- Industrial grade nylon case
- Easily accessible re-zero adjustment screw
- 5% full scale accuracy
- Mounting bracket with screws included
Applications:
- Low pressure and differential monitoring for air and non-combustible gases including filters, blowers, vacuums, air handlers and clean rooms
| Pressure Range | 0-500 Pa |
| Dial | 2 1/16? (52.4mm), white aluminum with black markings |
| Case | Glass filled nylon, black |
| Lens | Polycarbonate |
| Ring | Threaded die-cast black aluminum |
| Process Connection | 3/16? barbed for ID tubing |
| Movement | Resistance-free and magnetic |
| Pointer | Aluminum, anodized black |
| Over-pressure Limit | Maximum pressure of 30 psi / 207 kPa |
| Ambient/Process Temperatures | 20?F to 120?F (-7?C to 49?C) |
| Accuracy | ? 5% of full scale |
| Approvals | CE |
| Accessories | Panel mounting bracket, allen key, two nuts & bolts |
| Installation Attention | Only in vertical position |
