WINTER PFP1062ZR SS 6" 0-100 PSI/KPA 1/4" NPT BTTM WITH STABILIZR?
(No reviews yet)
Write a Review
Write a Review
U.S. Winter instruments
WINTER PFP1062ZR SS 6" 0-100 PSI/KPA 1/4" NPT BTTM WITH STABILIZR?
$507.79
- Brand
- U.S. Winter instruments
- SKU:
- PFP1062ZR
- UPC:
- 6.28311E+11
- Availability:
- In Stock
Winters, PFP1062ZR, PFP-ZR Premium Stainless Steel Gauge with Dual Scale, 0/100 psi/kPa
Features:
- StabiliZR dampened movement minimizes effects of pulsation and vibration without liquid filling
- Restrictor screw standard on dual scale (optional on single scale)
- Stainless steel case
- Under and overload stops
- 316 SS wetted parts
- ASME B40.100 compliant (EN837-1 available)
- RoHS compliant
- CRN registered
Applications:
- Ideally suited for process, chemical and petroleum industry
- Where chemical compatibility and contamination is a concern
| Dial | 6" (150 mm) white aluminum with black and red markings |
| Case | AISI 304 SS (dry) |
| Lens | Polycarbonate |
| Ring | AISI 304 SS bayonet |
| Socket | 316L SS |
| Connection | 1/4" Bottom |
| Bourdon Tube | 316L SS |
| Welding | Laser welded socket to case |
| Lens Ring Gasket | Buna N |
| Ambient Temperature | -40?F to 250?F (-40?C to 120?C) |
| Process Temperature | -40?F to 250?F (-40?C to 120?C) |
| Working Pressure | Maximum 75% of full scale value |
| Enclosure Rating | NEMA 4X/IP66, EN60529-1 (IEC529-1) |
| Scale Range | 0/100 psi/kPa |
0 Reviews Hide Reviews Show Reviews
U.S. Winter instruments

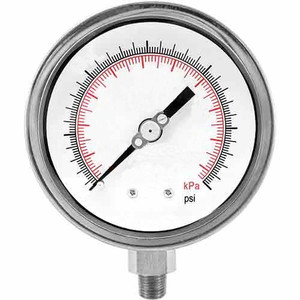

WINTER PFP2337ZR SS 6" 0-100 PSI/KPA 1/2" NPT BTTM WITH STABILIZR?
