WINTER PUP2000B 2" DIAL,1/4" NPTM BCK,30"HG VAC
(No reviews yet)
Write a Review
Write a Review
U.S. Winter instruments
WINTER PUP2000B 2" DIAL,1/4" NPTM BCK,30"HG VAC
$385.34
- Brand
- U.S. Winter instruments
- SKU:
- PUP2000B
- UPC:
- 6.28311E+11
- Availability:
- In Stock
Winters, PUP2000B, Ultra High Purity Gauge, 2" Dial, 1/4" NPTM Back, 30" Hg VAC
Features:
- All stainless steel with electro-polished finish
- Helium leak tested
- Industrial grade polycarbonate lens
- Swivel face seal and NPT connections
- Grade A or Grade B accuracy class
- ASME B40.100 compliant
- CRN registered
Applications:
- Designed for high purity gas distribution applications in biotechnology, semiconductor, electronic and pharmaceutical industries
| Dial | 1.5" (35mm), 2" (50mm), 2.5" (63mm) aluminum |
| Case | 304 SS, electro-polished with pressure relief |
| Lens | Polycarbonate, twist-lock |
| Over-pressure Limit 2 | 25% up to 1,500 psi, 15% over 1,500 psi |
| Bourdon Tube | 316L SS |
| Socket | 316L SS |
| Movement | 304 SS |
| Enclosure Rating I | IP54/NEMA 3 |
| Wetted Parts | 316L SS, Ra = 10 microinches |
| Ambient Temperature | -40?F to 150?F (-40?C to 65?C) |
| Process Temperature | 212?F (100?C) maximum |
| Accuracy | 1.5" (35mm): ?3-2-3%, 2" (50mm) and 2.5 (63mm): ?2-1-2% |
| Agency Compliance | Assembled and packaged in Class 10 clean room |
0 Reviews Hide Reviews Show Reviews
U.S. Winter instruments
WINTER PUP2000 2" DIAL,1/4" NPTM BTM,30"HG VAC
$318.33
Winters, PUP2000, Ultra High Purity Gauge, 2" Dial, 1/4" NPTM Bottom, 30" Hg VACFeatures:All stainless steel with electro-polished finishHelium leak testedIndustrial grade polycarbonate lensSwivel...
U.S. Winter instruments

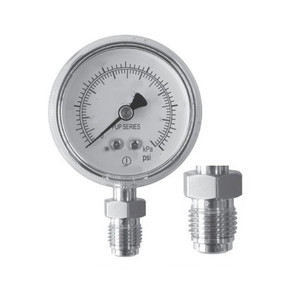

WINTER PUP2020B 2" DIAL,MALE SWIVEL BCK,30"HG VAC
$871.21
Winters, PUP2020B, Ultra High Purity Gauge, 2" Dial, Male Swivel Back, 30" Hg VACFeatures:All stainless steel with electro-polished finishHelium leak testedIndustrial grade polycarbonate lensSwivel...
U.S. Winter instruments

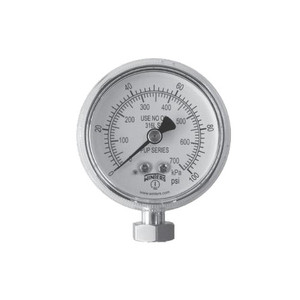

WINTER PUP2040B 2" DIAL,FEMALE SWIVEL BCK,30"HG VAC
