WINTER PUP2051 2" DIAL,FEMALE SWIVEL BTM,0-160 PSI
(No reviews yet)
Write a Review
Write a Review
U.S. Winter instruments
WINTER PUP2051 2" DIAL,FEMALE SWIVEL BTM,0-160 PSI
$636.65
- Brand
- U.S. Winter instruments
- SKU:
- PUP2051
- UPC:
- 6.28311E+11
- Availability:
- In Stock

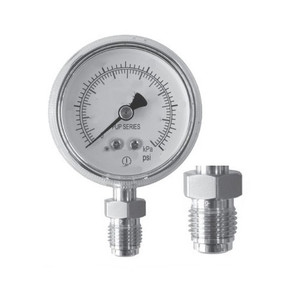

Winters, PUP2051, Ultra High Purity Gauge, 2", Dial, Female Swivel Bottom Connection, 0/160 Psi/kPa
Designed for high purity gas distribution applications in biotechnology, semiconductor, electronic and pharmaceutical industries.
Features:
- All stainless steel with electro-polished finish
- Helium leak tested
- Industrial grade polycarbonate lens
- Swivel face seal and NPT connections
- Grade A or Grade B accuracy class
- ASME B40.100 compliant
- CRN registered
| Dial | 2" (50mm) aluminum |
| Case | 304 SS, electro-polished with pressure relief |
| Lens | Polycarbonate, twist-lock |
| Over-pressure Limit | 25% up to 1,500 psi 15% over 1,500 psi |
| Bourdon Tube | 316L SS |
| Socket | 316L SS |
| Movement | 304 SS |
| Enclosure Rating | IP54/NEMA 3 |
| Wetted Parts | 316L SS, Ra = 10 microinches |
| Ambient Temperature | -40?F to 150?F (-40?C to 65?;C) |
| Process Temperature | 212?F (100?C) maximum |
| Accuracy | 2" (50mm) ?2-1-2% |
| Agency Compliance | Assembled and packaged in Class 10 clean room |
