Winters 1/2" SS 1" 300# 316SS BTM & DIAPHRAGM D441300SS5SS
(No reviews yet)
Write a Review
Write a Review
U.S. Winter instruments
Winters 1/2" SS 1" 300# 316SS BTM & DIAPHRAGM D441300SS5SS
$809.65
- Brand
- U.S. Winter instruments
- SKU:
- D441300SS5SS
- UPC:
- 6.28E+11
Winters, D441300SS5SS, D44 #300 1" x 1/2" NPTF, 316 SS Lower Housing, SS Welded Flanged
D44 #300 1" x 1/2" NPTF, 316 SS Lower Housing, Stainless Steel Welded Flanged Diaphragm Seal
Features:
- "Continuous use" seals-backing plate will prevent diaphragm from rupturing if pressure sensing instrument fails. Pressure will be held until instrument is replaced
- Various sizes and housing materials available
- ASME B40.100 compliant
- 1 year warranty
Applications:
- Used in industrial applications such as oil refineries, pulp and paper mills and chemical plants
| Material | Stainless Steel |
| Diaphragm Material | 316 SS |
| Housing | 316 SS |
| Construction | Two piece construction |
| Connection | 1/2" NPTF |
| Maximum Temperature Limit | 450?F (232?C) Teflon?Lined: 400?F (204?C) (higher temperature limits available) |
| Other | Cleanout type for easy cleaning and calibrating. Saddle diaphragm seals available upon request. Flushing connections available |
0 Reviews Hide Reviews Show Reviews
U.S. Winter instruments
Winters 1/4" SS 2" 300# 316 SS BTM/DIAPHRAGM D442300SS25SS
$1,642.25
Winters, D442300SS25SS, D44 #300 2" x 1/4" NPTF SS Welded Flanged Diaphragm SealApplications:Used in industrial applications such as oil refineries, pulp and paper mills and chemical...
U.S. Winter instruments
Winters 1/2" SS 1" 300# HAST C BTM & DIAPHRAGM D441300HH5SS
$1,529.38
Winters, D441300HH5SS, D44 #300 1" x 1/2" NPTF Stainless Steel Welded Flanged Diaphragm SealApplications:Used in industrial applications such as oil refineries, pulp and paper mills and chemical...
U.S. Winter instruments
Winters 1/2" CS 1" 300# 316 SS BTM & DIAPHRAGM D441300SS5CS
$763.86
Winters, D441300SS5CS, D44 #300 1" x 1/2" NPTF, 316 SS Lower Housing, Carbon Steel Welded FlangedFeatures:"Continuous use" seals-backing plate will prevent diaphragm from rupturing if pressure...
U.S. Winter instruments

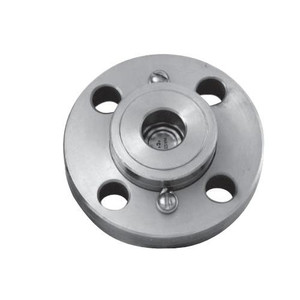

Winters 1/2" CS 1" 150# RF 316SS BTM & DIAPHRAGM D441150SS5CS
