Winters 1.25" SPIRAL TUBE 0/3000 PSI 1/8" NPT PSP12503000 (QTY of 100)
(No reviews yet)
Write a Review
Write a Review
U.S. Winter instruments
Winters 1.25" SPIRAL TUBE 0/3000 PSI 1/8" NPT PSP12503000 (QTY of 100)
$15.40
- Brand
- U.S. Winter instruments
- SKU:
- PSP12503000
- UPC:
- 6.28E+11
- Availability:
- In Stock
Winters PSP12503000 Offers
With a nickel-plated brass case, this spiral tube gauge is ideal for use on portable pneumatic equipment such as compressors, hand-held sprayers, pressurized recreational guns, oxygen tanks and regulators, pumps, and fire extinguishers.
Features
- Reliable, small diameter, low profile gauge
- 1" (25 mm) to 1.5" (40 mm) sizes
- ?" NPT socket
- Direct drive (no linkages or hairsprings) eliminating premature failure from the gear and movement
- Safety over-pressure port on the lens
- "Use no oil" for use in oxygen service
- ASME B40.100 compliant
- CRN registered
- UL listed for 1.25" and 1.5" gauges
Applications
- Pneumatic equipment
- Compressors
- Hand-held sprayers
- Pressurized recreational guns
- Oxygen tanks and regulators
- Pumps
- Fire extinguishers
Winters PSP12503000 Specifications
| Dial | 1.25" (32 mm) |
| Case | 304 SS |
| Lens | Plexiglass |
| Spiral/Socket | Brass |
| Connection | ?" NPT standard, back |
| Pointer | Brass |
| Over-pressure Limit | 10% of full scale value 25% of full scale value (0 to 3000 psi, UL404 listed) |
| Working Pressure | Maximum 75% of full scale value |
| Ambient/Process Temperature | -40 to 150?F (-40 to 65?C) |
| Accuracy | ?3-2-3% ANSI/ASME Grade B |
| Enclosure Rating | IP65 |
0 Reviews Hide Reviews Show Reviews
U.S. Winter instruments
Winters 1.25" SPIRAL TUBE 0/300 PSI 1/8" NPT PSP1250300 (QTY 100)
$13.98
Winters PSP1250300 OffersFeatures 1" (25mm) to 1.5" (40mm) sizes 1/8" NPT socket Direct drive (no linkages or hairsprings) eliminating premature failure from the gear and movement Safety...
U.S. Winter instruments
Winters 1.25" SPIRAL TUBE 0/100 PSI 1/8" NPT PSP1250100
$13.98
Winters PSP1250100 OffersFeatures 1" (25mm) to 1.5" (40mm) sizes 1/8" NPT socket Direct drive (no linkages or hairsprings) eliminating premature failure from the gear and movement Safety...
U.S. Winter instruments
Winters 1.25" SPIRAL TUBE 0/1500 PSI 1/8" NPT PSP12501500 - QTY of 150
$15.40
Features: Reliable, small diameter, low profile gauge 1/8" NPT socket Direct drive (no linkages or hairsprings) eliminating premature failure from the gear and movement Safety over-pressure port on...
U.S. Winter instruments
Winters 1.5" SPIRAL TUBE 0/3000 PSI 1/8" NPT PSP15003000
$15.40
1.5" SPIRAL TUBE 0/3000 PSI 1/8" NPT
U.S. Winter instruments
Winters 1.25" SPIRAL TUBE 0/1000 PSI 1/8" NPT PSP12501000
$13.98
1.25" SPIRAL TUBE 0/1000 PSI 1/8" NPT
U.S. Winter instruments
Winters 1.25" SPIRAL TUBE 0/160 PSI 1/8" NPT PSP1250160
$13.98
Winters PSP1250160 OffersFeatures 1" (25mm) to 1.5" (40mm) sizes 1/8" NPT socket Direct drive (no linkages or hairsprings) eliminating premature failure from the gear and movement Safety...
U.S. Winter instruments
Winters 1.25" SPIRAL TUBE 0/200 PSI 1/8" NPT PSP1250200
$13.98
Winters PSP1250200 OffersFeatures 1" (25mm) to 1.5" (40mm) sizes 1/8" NPT socket Direct drive (no linkages or hairsprings) eliminating premature failure from the gear and movement Safety...
U.S. Winter instruments

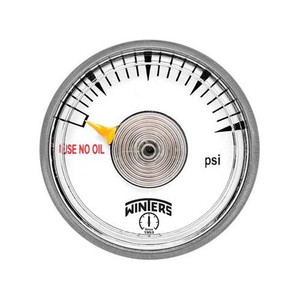

Winters 1.25" SPIRAL TUBE 0/2000 PSI 1/8" NPT PSP12502000
