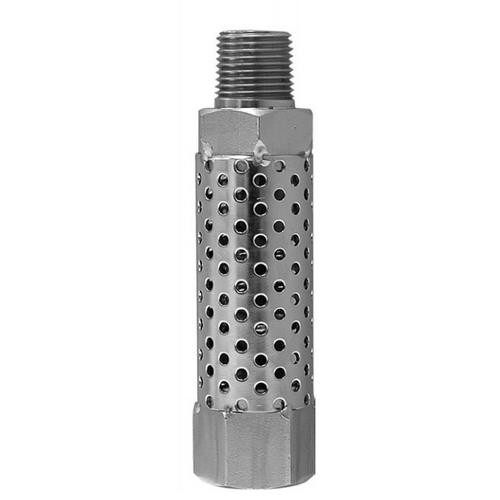

Winters 1/4" X 1/4" COOLING DEVICE FOR DIAPHRAGM SCT-600
(No reviews yet)
Write a Review
Write a Review
U.S. Winter instruments
Winters 1/4" X 1/4" COOLING DEVICE FOR DIAPHRAGM SCT-600
$619.24
- Brand
- U.S. Winter instruments
- SKU:
- SCT-600
- UPC:
- 6.28E+11
Description
Winters, SCT-600, SCT 1/4" NPTM x 1/4" NPTF Cooling Tower, 500 Deg. C Max Process Temperature
Features:
- Perforated case c/w spiral tubing protects pressure gauges, switches and transmitters. Used where the process media temperature exceeds the rating of the instrument
- For process media temperatures up to 570?F. Can reduce the media temperature by as much as 500?F
- CRN registered
- 1 year warranty
Applications:
- Clean (no particulate) media, gases
- When used with a diaphragm seal, the pressure rating of the diaphragm seal must be acknowledged
Specification
| Socket | 316 L SS |
| Tube | 316 SS |
| Maximum Operating Pressure | 1,500 PSI |
| Maximum Process Temperature | 570?F (300?C) or 932?F (500?C) |
| Connection | 1/4" NPTM x 1/4" NPTF |
