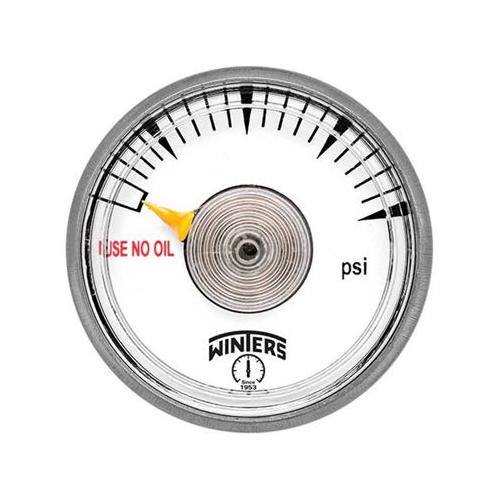

Winters 1.5" SPIRAL TUBE 0/60 PSI 1/8" NPT PSP150060
(No reviews yet)
Write a Review
Write a Review
U.S. Winter instruments
Winters 1.5" SPIRAL TUBE 0/60 PSI 1/8" NPT PSP150060
$13.98
- Brand
- U.S. Winter instruments
- SKU:
- PSP150060
- UPC:
- 6.28E+11
- Availability:
- In Stock
Features:
- Reliable, small diameter, low profile gauge
- 1/8" NPT socket
- Direct drive (no linkages or hairsprings) eliminating premature failure from the gear and movement
- Safety over-pressure port on the lens
- "Use No Oil" for use in oxygen service
- ASME B40.100 compliant
- CRN registered
Applications:
- Commonly used on portable pneumatic equipment such as compressors, hand-held sprayers, pressurized recreational guns, oxygen tanks and regulators, pumps and fire extinguishers
| Scale value | 0/60 psi |
| Dial | 1.5" (40mm) white aluminum with black markings |
| Case | Nickel plated brass |
| Lens | Plexiglass |
| Spiral/Socket | Brass |
| Connection | 1/8" NPT |
| Pointed | Brass |
| Over-pressure Limit | 25% of full scale value |
| Working Pressure | Maximum 75% of full scale value |
| Ambient/Process Temperature | -40?F to 150?F (-40?C to 65?C) |
| Accuracy | ?3-2-3% ANSI/ASME Grade B |
| Enclosure Rating | IP65 |
