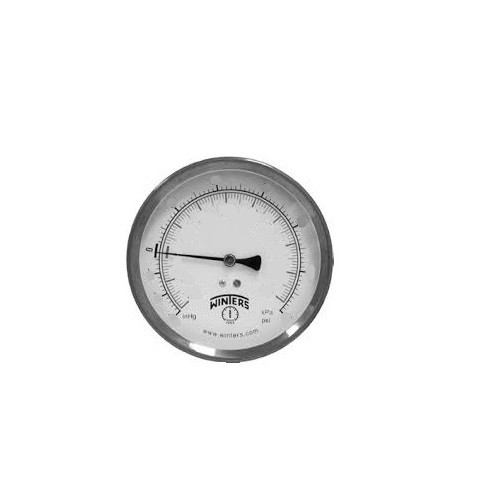

Winters 100 SERIES 3.5" 0-60 PSI/KPA 1/4" BTM P1S236
(No reviews yet)
Write a Review
Write a Review
U.S. Winter instruments
Winters 100 SERIES 3.5" 0-60 PSI/KPA 1/4" BTM P1S236
$82.39
- Brand
- U.S. Winter instruments
- SKU:
- P1S236
- UPC:
- 6.28E+11
- Availability:
- In Stock
Features:
- High quality, commercial grade gauge at an economical price
- 1% accuracy
- Steel and aluminum cases
- Brass wetted parts
- ASME B40.100 compliant (EN837-1 available)
- CRN registered
| Dial | 3.5" (90mm) |
| Case | Steell painted black |
| Lens | Bottom connection |
| Ring | Bottom connection: Polished brass |
| Socket | Brass |
| Connection | 0/60 psi/kPa |
| Bourdon Tube | Phosphor bronze |
| Pointer | Black aluminum |
| Welding | Silver alloy |
| Over-pressure Limit | 25% of full scale value |
| Working Pressure | Maximum 75% of full scale value |
| Ambient/Process Temperature | -40degF to 200degF (-40degC to 93degC) |
| Accuracy | 1% ANSI/ASME Grade 1A |
| Enclosure Rating | IP52 |
