Winters 15" 304 ST/ST THERMOWELL, 3/4" NPT TBR15-1
(No reviews yet)
Write a Review
Write a Review
U.S. Winter instruments
Winters 15" 304 ST/ST THERMOWELL, 3/4" NPT TBR15-1
$313.28
- Brand
- U.S. Winter instruments
- SKU:
- TBR15-1
- UPC:
- 6.28E+11
Description

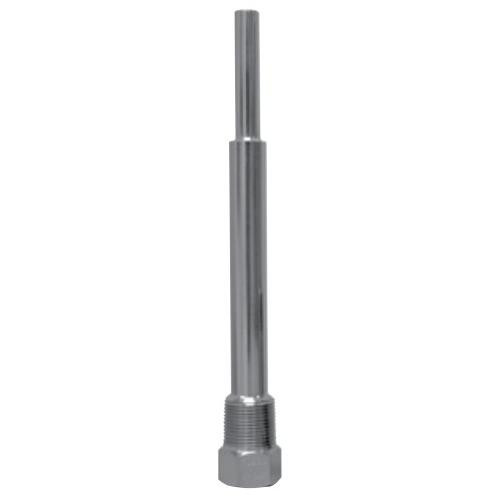

Winters, TBR15-1, TBR Bi-Metal Threaded Thermowell, 15" Length, 3/4" NTP, 304 SS
Allows for the creation of a "sealed system", whereby the thermometer can be removed from the application without the need for shutting down or draining the system. To protect the thermometer from possible exposure to the process media.
Specification
| Thermometer Connection | 1/2" NPTF |
| Process Connection | 3/4" NPT |
| Bore | 0.260" (6.5mm) |
| Construction | Stepped |
| Material | 304 SS |
| Pressure - Temperature Rating | |
| 70?F (21?C) | 7,000 psi |
| 200?F (93?C) | 6,200 psi |
| 400?F (204?C) | 5,600 psi |
| 600?F (316?C) | 5,400 psi |
| 800?F (427?C) | 5,200 psi |
| 1,000?F (538?C) | 4,500 psi |
| 1,200?F (649?C) | 1,650 psi |
