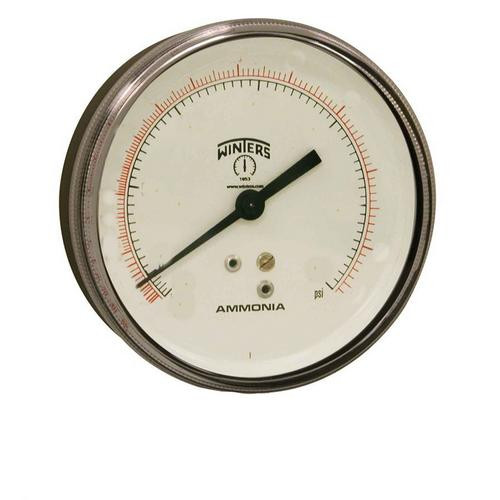

Winters 2.5" AMMONIA 30/0/300 PSI/F 1/4" BACK PAM1753
(No reviews yet)
Write a Review
Write a Review
U.S. Winter instruments
Winters 2.5" AMMONIA 30/0/300 PSI/F 1/4" BACK PAM1753
$132.86
- Brand
- U.S. Winter instruments
- SKU:
- PAM1753
- UPC:
- 6.28E+11
Winters PAM1753 Offers
Features
- ?0.5% to ?3-2-3% accuracy available
- 2.5" (63mm) to 10" (250mm) dial sizes
- ASME B40.100 compliant
- RoHS compliant (SS internals only)
- CRN registered
- 5 year warranty
Applications
Used to display pressure and temperature on refrigeration systems.
Winters PAM1753 Specifications
| Range | 30" Hg-0-300 psi/deg f |
| Dial | 2.5" White aluminum with black and red markings |
| Case | 2.5" Steel, painted black |
| Lens | Polycarbonate |
| Ring | 2.5" Steel painted black |
| Socket | 316L SS |
| Connection | 1/4" NPT standard |
| Bourdon Tube | 316L SS, drawn seamless |
| Movement | 304 SS |
| Pointer | Aluminum, anodized black |
| Welding | TIG |
| Over-Pressure Limit | 30% of full scale value |
| Working Pressure | Maximum 75% of full scale value |
| Ambient/Process Temperature | Dry: -40 to 150?F (-40 to 65?C) Glycerin filled: -4 to 150?F (-20 to 65?C) |
| Accuracy | ?1.5% of full scale |
| Enclosure Rating | IP65 |
