Winters 2.5" DIAL, SS STABILIZR(tm) PREMIUM, 0-100 PSI,1/4"BACK PFP924ZRR1
(No reviews yet)
Write a Review
Write a Review
U.S. Winter instruments
Winters 2.5" DIAL, SS STABILIZR(tm) PREMIUM, 0-100 PSI,1/4"BACK PFP924ZRR1
$119.10
- Brand
- U.S. Winter instruments
- SKU:
- PFP924ZRR1
- UPC:
- 6.28E+11
Description
Winters, PFP924ZRR1, PFP-ZR Premium Stainless Steel StabiliZR Gauge, Single Scale, Dial 2.5", 1/4" Back, 0/100 psi
Outdoor and severe ambient and process conditions. Use where harmful vibration and pulsation are present. Hydraulic equipment, oil field equipment, pumps, compressors and process industries.
Features:
- StabiliZR dampened movement minimizes effects of pulsation and vibration as effectively as liquid filled gauges
- Stainless steel case
- Back mounted
- 316L SS wetted parts
- ASME B40.100 compliant
Applications:
- Outdoor and severe ambient and process conditions
- Use where harmful vibration and pulsation are present
- Hydraulic equipment, oil field equipment, pumps, compressors and process industries
Specification
| Pressure Range | 0/100 psi |
| Dial | 2.5" (63mm) white aluminum with black and red markings |
| Case | AISI 304 SS (dry) |
| Lens | Polycarbonate |
| Ring | AISI 304 SS bayonet |
| Socket | 316L SS |
| Connection | 1/4" NPT |
| Bourdon Tube | 316L SS |
| Pointer | Aluminum, anodized black |
| Welding | Laser welded socket to case |
| Over-pressure Limit | 25% |
| Lens Ring Gasket | Buna N |
| Ambient Temperature | -40degF to 250degF (-40degC to 120degC) |
| Process Temperature | -40degF to 250degF (-40degC to 120degC) |
| Working Pressure | Maximum 75% of full scale value |
| Accuracy | +/-1.5% of full scale value |
| Enclosure Rating | NEMA 4X/IP66, EN60529-1 (IEC529-1) |
0 Reviews Hide Reviews Show Reviews
U.S. Winter instruments
Winters 2.5"DIAL, SS STABILIZR(tm) PREMIUM,30-0-100 PSI,1/4"BACK PFP873ZRR1
$125.02
Winters, PFP873ZRR1, PFP-ZR Premium Stainless Steel StabiliZR Gauge, Single Scale, Dial 2.5", 1/4" Back, 30"/0/100 psiOutdoor and severe ambient and process conditions. Use where harmful vibration...
U.S. Winter instruments
Winters 2.5" DIAL, SS STABILIZR(tm) PREMIUM, 0-100 PSI/KPA,1/4"BACK PFP924ZR
$122.55
DescriptionWinters, PFP924ZR, PFP-ZR Premium Stainless Steel StabiliZR Gauge, Dual Scale, Dial 2.5", 1/4" Back, 0/100 psi/kPaOutdoor and severe ambient and process conditions. Use where harmful...
U.S. Winter instruments
Winters 2.5"DIAL, SS STABILIZR(tm) PREMIUM, 0-10000 PSI,1/4"BACK PFP853ZRR1
$128.61
DescriptionWinters, PFP853ZRR1, PFP-ZR Premium Stainless Steel StabiliZR Gauge, Single Scale, Dial 2.5", 1/4" Back, 0/10,000 psiOutdoor and severe ambient and process conditions. Use where harmful...
U.S. Winter instruments
Winters 2.5"DIAL, SS STABILIZR(tm) PREMIUM, 0-15000 PSI,1/4"BACK PFP855ZRR1
$128.61
Winters, PFP855ZRR1, PFP-ZR Premium Stainless Steel StabiliZR Gauge, Single Scale, Dial 2.5", 1/4" Back, 0/15,000 psiOutdoor and severe ambient and process conditions. Use where harmful vibration and...
U.S. Winter instruments

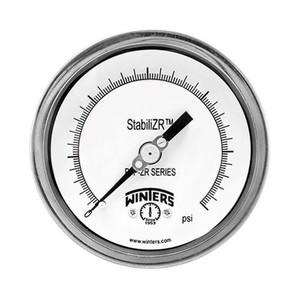

Winters 2.5" DIAL, SS STABILIZR(tm) PREMIUM, 0-400 PSI,1/4"BACK PFP881ZRR1
