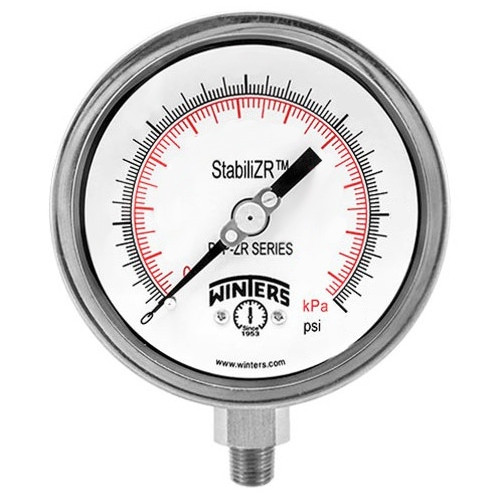

Winters 2.5" DIAL, SS STABILIZR(tm) PREMIUM, 30"HG VAC/KPA, 1/4" BTM PFP820ZR
(No reviews yet)
Write a Review
Write a Review
U.S. Winter instruments
Winters 2.5" DIAL, SS STABILIZR(tm) PREMIUM, 30"HG VAC/KPA, 1/4" BTM PFP820ZR
$122.55
- Brand
- U.S. Winter instruments
- SKU:
- PFP820ZR
- UPC:
- 6.28311E+11
Winters, PFP820ZR, PFP-ZR Premium Stainless Steel StabiliZR Gauge, Dual Scale, Dial 2.5", 1/4" Bottom, 30" Hg Vac/kPa
Outdoor and severe ambient and process conditions. Use where harmful vibration and pulsation are present. Hydraulic equipment, oil field equipment, pumps, compressors and process industries.
Features:
- StabiliZR dampened movement minimizes effects of pulsation and vibration as effectively as liquid filled gauges
- Stainless steel case
- Bottom mounted
- 316L SS wetted parts
- ASME B40.100 compliant
Applications:
- Outdoor and severe ambient and process conditions
- Use where harmful vibration and pulsation are present
- Hydraulic equipment, oil field equipment, pumps, compressors and process industries
| Pressure Range | 30" Hg Vac/kPa |
| Dial | 2.5" (63mm) white aluminum with black and red markings |
| Case | AISI 304 SS (dry) |
| Lens | Polycarbonate |
| Ring | AISI 304 SS bayonet |
| Socket | 316L SS |
| Connection | 1/4" NPT |
| Bourdon Tube | 316L SS |
| Pointer | Aluminum, anodized black |
| Welding | Laser welded socket to case |
| Over-pressure Limit | 25% |
| Lens Ring Gasket | Buna N |
| Ambient Temperature | -40degF to 250degF (-40degC to 120degC) |
| Process Temperature | -40degF to 250degF (-40degC to 120degC) |
| Working Pressure | Maximum 75% of full scale value |
| Accuracy | +/-1.5% of full scale value |
| Enclosure Rating | NEMA 4X/IP66, EN60529-1 (IEC529-1) |
