Winters 2.5" DIAL, U-CLAMP 1/4" BACK 0-30PSI/KPA PEU1437UC
(No reviews yet)
Write a Review
Write a Review
U.S. Winter instruments
Winters 2.5" DIAL, U-CLAMP 1/4" BACK 0-30PSI/KPA PEU1437UC
$37.69
- Brand
- U.S. Winter instruments
- SKU:
- PEU1437UC
- UPC:
- 6.28E+11
Winters, PEU1437UC, PEU Economy Panel Mounted Gauge, 2.5" x 1/4" NPT Back, 0/30 psi/kPa.
Features:
- Most economical pressure gauge used for panels
- Black steel case
- Brass wetted parts
- Stainless steel crimp-on bezel
- Stud-style U-Clamp design for secure panel mounting
- ?3-2-3% accuracy
- Dual scale (psi/kPa)
- ASME B40.100 compliant
- CRN registered
Applications:
- For measuring gases, air, water and oils when equipment or processes require an economical panel mounted gauge
- Suitable for non-clogging, non-corrossive media
| Scale value | 0/30 psi/kPa |
| Dial | 2.5" (63mm) white aluminum with black and red markings |
| Case | Steel, painted black |
| Lens | Acrylic |
| Ring | SS |
| Socket | Brass |
| Connection | 1/4" NPT standard |
| Bourdon Tube Brass | Phosphor bronze |
| Movement | Brass |
| Pointer | Aluminum, black |
| Welding | Silver solder |
| Over-pressure Limit | 25% of full scale value |
| Working Pressure | Maximum 75% of full scale value |
| Ambient/Process Temperature | -40?F to 150?F (-40?C to 65?C) |
| Accuracy | ?3-2-3% ANSI/ASME Grade B |
| Enclosure Rating | IP52 |
0 Reviews Hide Reviews Show Reviews
U.S. Winter instruments

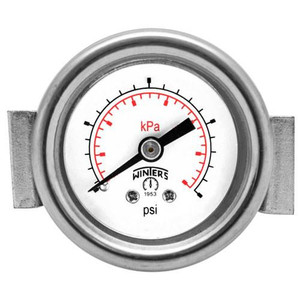

Winters 2.5" DIAL, U-CLAMP 1/4"BACK 0-100PSI/KPA PEU1439UC
