Winters 2WPS SWITCH, AL, NEMA 4, 15-250PSI, SPDT, ADJ, SCREW TERM, 1/4"NPT 2WPSH0250A
(No reviews yet)
Write a Review
Write a Review
U.S. Winter instruments
Winters 2WPS SWITCH, AL, NEMA 4, 15-250PSI, SPDT, ADJ, SCREW TERM, 1/4"NPT 2WPSH0250A
$534.73
- Brand
- U.S. Winter instruments
- SKU:
- 2WPSH0250A
- UPC:
- 6.28E+11
Winters, 2WPSH0250A, 2WPS 15 - 250 PSI, 1/4" NPTF, 125/250VAC General Purpose Pressure Switch
Features:
- Piston-type pressure switch
- Vac to 500 PSI pressure range
- SPDT switch
- Fixed or adjustable deadband
- Simple set point adjustment
- Anodized aluminum construction with Buna N wetted parts
- ±2% of the adjustable range accuracy
- NEMA 4, IP65 enclosure rating (NEMA 4X optional)
- UL, CSA approved and PED compliant
- CRN registered
- 1 year warranty
Applications:
- Suitable for pump and compressor monitoring, HVAC systems and general industrial applications
| Pressure Range Min: | 15 PSI (1 bar) |
| Pressure Range Max: | 250 PSI (17 bar) |
| Proof Pressure PSI (bar): | 1,000 (69) |
| Housing Material: | Anodized aluminum |
| Accuracy: | ±2% of the adjustable range |
| Pressure Connection: | 1/4" NPTF |
| Electrical Connection: | 1/2" NPTF conduit connection with screw terminals |
| Wetted Parts: | Aluminum and Buna N (Teflon® O-ring or Viton® diaphragm optional) |
| Set Point Adjustment: | Self locking adjustment nut |
| Deadband: | Fixed or adjustable |
| Contact Rating: | 10 amps @ 125/250 Vac |
| No. of Contacts: | One, SPDT |
| Ambient/Process Temperature: | -20°F to 165°F (-29°C to 74°C) |
| Enclosure Rating: | NEMA 4, IP65 |
| Approvals: | UL, CSA, CRN, PED 97/23/EC compliant |
| Weight: | 1.5 lbs (680 grams) |
0 Reviews Hide Reviews Show Reviews
U.S. Winter instruments
Winters 2WPS SWITCH, AL, NEMA 4X, 15-250PSI, SPDT, ADJ, SCREW TERM, 1/4"NPT 2WPSH0250AFX
$705.71
Winters, 2WPSH0250AFX, 2WPS 15-250 PSI, 1/4" NPT, NEMA 4x General Purpose Pressure SwitchFeatures:Piston-type pressure switchVac to 500 PSI pressure rangeSPDT switchFixed or adjustable deadbanSimple...
U.S. Winter instruments

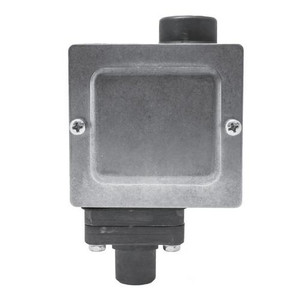

Winters 2WPS SWITCH, AL, NEMA 4, 10-250PSI, SPDT, FIXED, SCREW TERM, 1/4"NPT 2WPSH0250F
