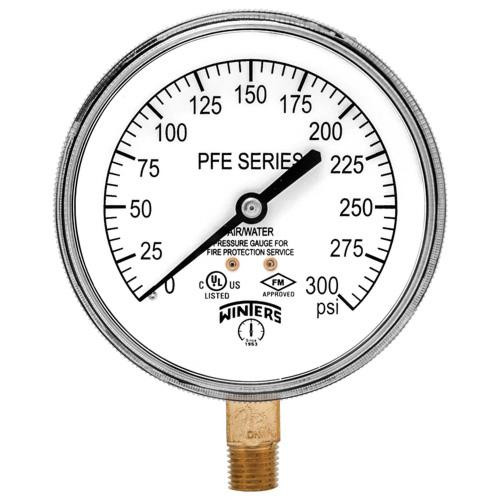

Winters 3.5" DIAL, 1/4" BTM 0-300 PSI AIR/WATER PFE3935R1
(No reviews yet)
Write a Review
Write a Review
U.S. Winter instruments
Winters 3.5" DIAL, 1/4" BTM 0-300 PSI AIR/WATER PFE3935R1
$32.64
- Brand
- U.S. Winter instruments
- SKU:
- PFE3935R1
- UPC:
- 6.28E+11
Features:
- Specially designed for fire sprinkler systems
- Suitable for air and water media
- Corrosion resistant case
- Approved by Factory Mutual (FM) and listed by Underwriter Laboratory (UL-393), USA and Canada
- Internal pointer travel over-stop
- ASME B40.100 compliant
- CRN registered
Applications:
- Ideally suited for fire sprinkler systems and fire fighting equipment
| Dial | 3.5" (90mm), white aluminum with black and red markings |
| Case | Black plastic |
| Lens | Polycarbonate, threaded |
| Socket | Brass |
| Connection | 1/4" NPT standard, bottom |
| Bourdon Tube | Phosphor bronze |
| Movement | Brass |
| Pointer | Aluminum, black |
| Welding | Silver Alloy |
| Working Pressure | Maximum 75% of full scale value |
| Ambient/Process Temperature | -40degF to 150degF (-40degC to 65degC) |
| Accuracy | 3-2-3% ASME Grade B |
| Enclosure Rating | IP52 |
