Winters 30"-0-200 PSI 1/4" NPT BRASS PPC5125ZRR1
(No reviews yet)
Write a Review
Write a Review
U.S. Winter instruments
Winters 30"-0-200 PSI 1/4" NPT BRASS PPC5125ZRR1
$180.27
- Brand
- U.S. Winter instruments
- SKU:
- PPC5125ZRR1
- UPC:
- 6.28E+11
Features:
- StabiliZRTM dampened movement minimizes effects of pulsation and vibration as effectively as liquid filled gauges
- Solid phenolic front and polypropylene pressure relief back safety case
- +/-0.5% accuracy
- Stainless steel full rotary movement
- Micrometer adjustable pointer for ease in calibration
- Under and overload stops
- 316L stainless steel or brass wetted parts standard
- Restricted orifice standard on dual scale
- ASME B40.100 compliant
- CRN registered
Applications:
- Ideally suited for process, chemical, petroleum and power industries
- Suitable for non-clogging corrosive media
- Used where operator safety is a requirement
- Processes where pulsation and vibration exist
| Dial | 4.5" (115mm) white aluminum with black and red markings |
| Case | Black phenolic with pressure relief back, solid front, integral back flange |
| Solid Wall | Phenolic |
| Pressure Relief Back | Polypropylene |
| Working Pressure | Maximum 75% of full scale value |
| Ambient Temperature | Dry: -40F to 250F (-40C to 120C) Glycerin Filled: -4F to 150F (-20C to 65C) |
| Bourdon Tube | 316L SS, drawn seamless |
| Accuracy | +/-0.5% ANSI/ASME Grade 2A |
| Socket, Tube | Brass |
| Connection | 1/4" Bottom |
0 Reviews Hide Reviews Show Reviews
U.S. Winter instruments
Winters 30"-0-200 PSI/KPA 1/4" NPT BRASS PPC5125ZR
$180.27
Winters, PPC-ZR, Process Gauge, 30"-0-200 PSI/KPA, 1/4", NPT BRASSFeatures:StabiliZRTM dampened movement minimizes effects of pulsation and vibration as effectively as liquid filled gaugesSolid...
U.S. Winter instruments

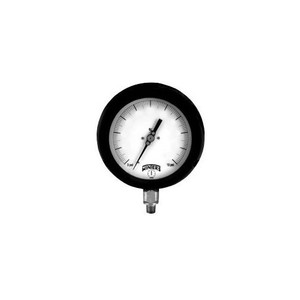

Winters 0-200 PSI 1/4" NPT BRASS PPC5086ZRR1
