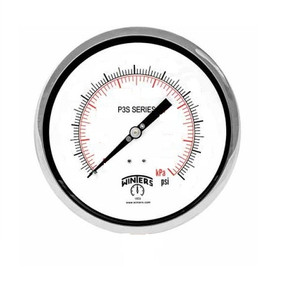

Winters 300 SERIES 4.5" 0-400 PSI/KPA 1/4" BTM P3S6015
(No reviews yet)
Write a Review
Write a Review
U.S. Winter instruments
Winters 300 SERIES 4.5" 0-400 PSI/KPA 1/4" BTM P3S6015
$255.06
- Brand
- U.S. Winter instruments
- SKU:
- P3S6015
- UPC:
- 6.28311E+11
Features:
- Heavy duty, highly accurate aluminum case gauge
- 0.5% accuracy
- Brass or stainless steel internals
- Large, easy-to-read dial
- StabiliZRTM dampened movement available on 4.5" (115mm) dial size
- ASME B40.100 compliant
- CRN registered
Applications:
- Intended for non-clogging installations
- Use on air, steam, oil, fresh water
- Boilers, control rooms and chillers
| Dial | 4.5" (115mm) white aluminum with black and red markings |
| Case | Aluminum painted black |
| Front Flange | SS, polished |
| Back Flange | Steell, painted black (optional) |
| Lens | Glass |
| Ring | SS, polished |
| Socket | Brass |
| Connection | 0/400 PSI/KPA |
| Bourdon Tube | Phosphor bronze for ranges up to 600 psi (4,137 kPa) 316L SS for ranges over 600 psi (4,137 kPa) |
| Movement | Brass |
| Pointer | Aluminum, anodized black, micrometer adjustable |
| Welding | Tin/copper alloy for ranges up to 600 psi (4,137 kPa) Silver alloy for ranges over 600 psi (4,137 kPa) |
| Over-pressure Limit | 30% for pressures up to 600 psi (4,137 kPa), 25% for pressures 601 psi to 1,400 psi (4,137 kPa to 9,653 kPa), 15% for pressures over 1,400 psi (9,653 kPa) |
| Working Pressure | Maximum 75% of full scale value |
| Ambient/Process Temperature | -40degF to 150degF (-40degC to 65degC) |
| Accuracy | 0.5% ANSI/ASME Grade 2A |
| Enclosure Rating | IP52 |
