Winters 300 SERIES 4.5" 0-400 PSI/KPA 1/4 SS BTM P3S6040
(No reviews yet)
Write a Review
Write a Review
U.S. Winter instruments

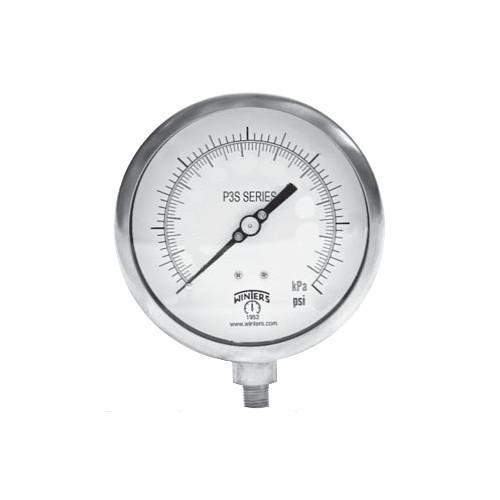

Winters 300 SERIES 4.5" 0-400 PSI/KPA 1/4 SS BTM P3S6040
$298.18
- Brand
- U.S. Winter instruments
- SKU:
- P3S6040
- UPC:
- 6.28311E+11
Intended for non-clogging installations. Use on air, steam, oil, fresh water. Boilers, control rooms and chillers.
Features:
- Heavy duty, highly accurate aluminum case gauge
- ?0.5% accuracy
- Brass or stainless steel internals
- Large, easy-to-read dial
- StabiliZR dampened movement available on 4.5" (115mm) dial size
- ASME B40.100 compliant
| Pressure Range | 0/400 psi/kPa |
| Dial | 4.5" (115mm) white aluminum with black and red markings |
| Case | Aluminum painted black |
| Front Flange | SS, polished |
| Back Flange | Steel, painted black (optional) |
| Lens | Glass |
| Ring | SS, polished |
| Socket | 316L SS |
| Connection | 1/4" NPT |
| Bourdon Tube | 316L SS |
| Movement | 304 SS |
| Pointer | Aluminum, anodized black, micrometer adjustable |
| Welding | 316L SS TIG Argonarc |
| Over-pressure Limit | 30% |
| Working Pressure | Maximum 75% of full scale value |
| Ambient/Process Temperature | -40?F to 150?F (-40?C to 65?C) |
| Accuracy | ?0.5% ANSI/ASME Grade 2A |
| Enclosure Rating | IP52 |
