Winters 300 SERIES 8.5" 0-200 PSI/KPA 1/4" NPT BTM P3S6213
(No reviews yet)
Write a Review
Write a Review
U.S. Winter instruments
Winters 300 SERIES 8.5" 0-200 PSI/KPA 1/4" NPT BTM P3S6213
$721.07
- Brand
- U.S. Winter instruments
- SKU:
- P3S6213
- UPC:
- 6.28E+11

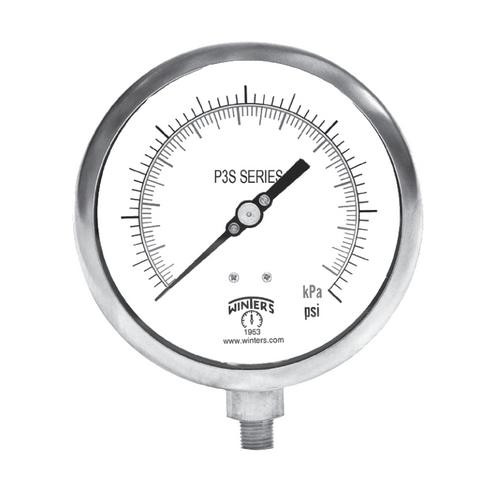

Winters, P3S6213, P3S 8.5" Dial, 0/200 PSI/kPa, 1/4" NPT Bottom Brass Pressure Gauge
Features:
- Heavy duty, highly accurate aluminum case gauge
- ?0.5% accuracy
- Brass or stainless steel internals
- Large, easy-to-read dial
- StabiliZR? dampened movement available on 4.5" (115mm) dial size
- ASME B40.100 compliant
- CRN registered
- 5 year warranty
Applications:
- Use on air, steam, oil, fresh water
- Boiler and control room
| Range | 0/200 PSI/kPa Bottom | |
| Dial | 8.5" (215mm) white aluminum with black and red markings | |
| Case | Aluminum painted black | |
| Front Flange | Aluminum painted black | |
| Back Flange | Aluminum, painted black | |
| Lens | Polycarbonate | |
| Ring | Anodized aluminum | |
| Socket | Brass | |
| Connection | 1/4" NPT for ranges up to 600 PSI (4,137 kPa), | |
| Bourdon Tube | Phosphor bronze for ranges up to 600 PSI (4,137 kPa), 316L SS for ranges over 600 PSI (4,137 kPa) | |
| Movement | Brass | |
| Pointer | Aluminum, anodized black, micrometer adjustable | |
| Welding | Tin/copper alloy for ranges up to 600 PSI (4,137 kPa) Silver alloy for ranges over 600 PSI (4,137 kPa) | |
| Over-Pressure Limit | 30% for pressures up to 600 PSI (4,137 kPa), 25% for pressures over 600 PSI to 1,400 PSI (4,137 kPa to 9,653 kPa), 15% for pressures over 1,400 PSI (9,653 kPa) | |
| Working Pressure | Maximum 75% of full scale value | |
| Ambient/Process Temperature | -40?F to 150?F (-40?C to 65?C) | |
| Accuracy | ?0.5% ANSI/ASME Grade 2A | |
| Enclosure Rating | IP52 |
