Winters 4.5" BRASS DUPLEX 0/160 PSI 1/4"NPT BACK PDX8015B
$1,025.90
- Brand
- U.S. Winter instruments
- SKU:
- PDX8015B
- UPC:
- 6.28311E+11
PDX8015B, PDX 0/160 PSI Back Duplex Pressure Gauge, Brass Socket
Features:
- Heavy duty, highly accurate, aluminum case
- Two separate bourdon tubes and pointers
- One red and one black pointer
- ASME B40.100 compliant
- CRN registered
Applications:
- Comparing two separate process pressures on the same gauge
- Utilized on pump and filter applications
| Dial | 4.5" (115mm), 0/160 PSI |
| Case | Aluminum, painted black |
| Front Flange | SS |
| Back Flange | Black steel |
| Lens | Glass |
| Ring | 4.5" (115mm): SS |
| Socket | Brass |
| Connections | 1/4" Back (LB) |
| Scale | PSI only |
| Bourdon Tubes | Brass, independent, matched |
| Movement | Brass |
| Pointer | Aluminum, micrometer |
| Welding | Tin/copper alloy for brass internals |
| Over-Pressure Limit | 30% of full scale value |
| Working Pressure | Maximum 75% of full scale value |
| Ambient/Process Temperature | -40?F to 150?F (-40?C to 65?C) |
| Accuracy | +/-1% ANSI/ASME Grade 1A |
0 Reviews Hide Reviews Show Reviews
U.S. Winter instruments
Winters 4.5" BRASS DUPLEX 0-160 PSI 1/4" NPT PDX8015
$932.62
4.5" BRASS DUPLEX 0-160 PSI 1/4" NPT
U.S. Winter instruments
Winters 4.5" SS DUPLEX 0/160 PSI 1/4" NPT BACK PDX8025B
$1,446.33
PDX8025B, PDX 0/160 PSI Back Duplex Pressure Gauge, 316 SS SocketFeatures:Heavy duty, highly accurate, aluminum caseTwo separate bourdon tubes and pointersOne red and one black pointerASME B40.100...
U.S. Winter instruments
Winters 4.5" BRASS DUPLEX 0/600 PSI 1/4"NPT BACK PDX8018B
$1,025.90
4.5" BRASS DUPLEX 0/600 PSI 1/4"NPT BACK
U.S. Winter instruments
Winters 4.5" BRASS DUPLEX 0/100 PSI 1/4"NPT BACK PDX8014B
$1,025.90
4.5" BRASS DUPLEX 0/100 PSI 1/4"NPT BACK
U.S. Winter instruments

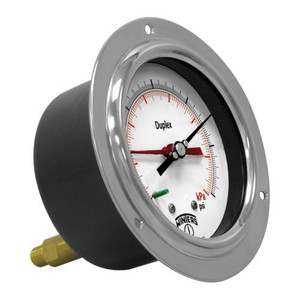

Winters 4.5" BRASS DUPLEX 0/15 PSI 1/4" NPT BACK PDX8011B
