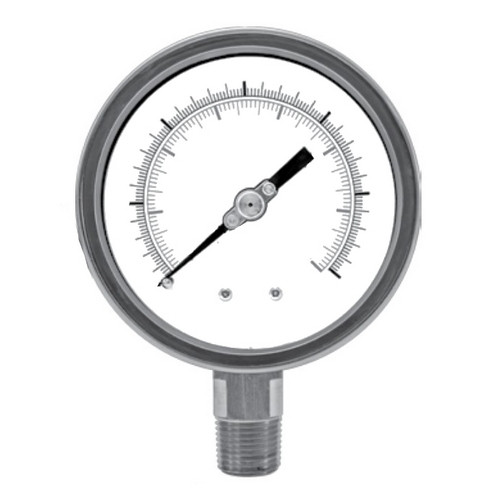

Winters 4" DIAL NACE 0/15000 PSI/KPA, 1/2" NPT BOTTOM PN2671N
(No reviews yet)
Write a Review
Write a Review
U.S. Winter instruments
Winters 4" DIAL NACE 0/15000 PSI/KPA, 1/2" NPT BOTTOM PN2671N
$345.11
- Brand
- U.S. Winter instruments
- SKU:
- PN2671N
- UPC:
- 6.28311E+11
Features:
- Designed for sour gas applications requiring NACE Standards MR0175-2002
- Glycerin and H2O filled case
- Blow out back plug
- Under and overload stops
- Wetted parts meet all hardness requirements
- ASME B40.100 compliant
- CRN registered
| Dial | 4" (100mm) aluminum with black and red markings |
| Case | 304 SS |
| Lens | Laminated safety glass |
| Ring | 304 SS, bayonet |
| Socket | 316L SS |
| Connection | 1/2" bottom |
| Bourdon Tube | 316L SS |
| Movement | 304 SS with under and overload stops |
| Pointer | Aluminum, anodized black, micrometer adjustable |
| Over-Pressure Limit | 25% for pressures up to 1,450 psi (9,998 kPa), 15% for pressures over 1,450 psi (9,998 kPa) |
| Ambient/Process Temperature | Dry: -40?F to 250?F (-40?C to 120?C) Glycerin Filled: -4?F to 150?F (-20?C to 65?C) |
| Accuracy | ?1% ANSI/ASME Grade 1A |
| Enclosure Rating | IP66 |
