Winters 4" FORGED BRASS CASE, 1/2" BOTTOM, 0-6000 PSI ONLY PBC784R1
(No reviews yet)
Write a Review
Write a Review
U.S. Winter instruments
Winters 4" FORGED BRASS CASE, 1/2" BOTTOM, 0-6000 PSI ONLY PBC784R1
$292.32
- Brand
- U.S. Winter instruments
- SKU:
- PBC784R1
- UPC:
- 6.28E+11
Features:
- One piece forged brass case designed for severe service conditions
- ASME B40.100 compliant
- CRN registered
Applications:
- High vibration industrial installations including hydraulic and fracking systems
| Dial Size | 4" (100mm) |
| Case | 4": dry case standard |
| Lens | Polycarbonate |
| Ring | 4" (100mm): polished brass |
| Socket | Brass |
| Connection | 4" (100mm): 1/2" NPT bottom |
| Wetted Parts | Brass |
| Ambient/Process Temperature | -40?F to 150?F (-40?C to 65?C) |
| Accuracy | 4" (100mm): ?1% ANSI/ASME Grade 1A |
| Enclosure Rating | IP65 |
| Connection | 1/2" Bottom |
| Range | 0/6,000 psi |
| Scale Order | Single |
0 Reviews Hide Reviews Show Reviews
U.S. Winter instruments
Winters 4" FORGED BRASS CASE, 1/4" BOTTOM, 0-6000 PSI PBC024R1
$292.32
DescriptionFeatures:One piece forged brass case designed for severe service conditionsASME B40.100 compliantCRN registeredApplications: High vibration industrial installations including hydraulic and...
U.S. Winter instruments
Winters 4" FORGED BRASS CASE, 1/2" BOTTOM, 0-6000 PSI/KPA PBC784
$292.32
Features:One piece forged brass case designed for severe service conditionsASME B40.100 compliantCRN registeredApplications: High vibration industrial installations including hydraulic and fracking...
U.S. Winter instruments

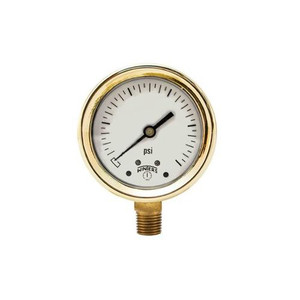

Winters 2.5" FORGED BRASS CASE, 1/4" BOTTOM, 0-6000 PSI PBC814R1
$115.16
Features:One piece forged brass case designed for severe service conditionsASME B40.100 compliantCRN registeredApplications: High vibration industrial installations including hydraulic and fracking...
U.S. Winter instruments

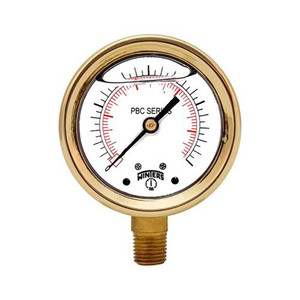

Winters 4" FORGED BRASS CASE, 1/4" BOTTOM, 0-6000 PSI/KPA PBC024
