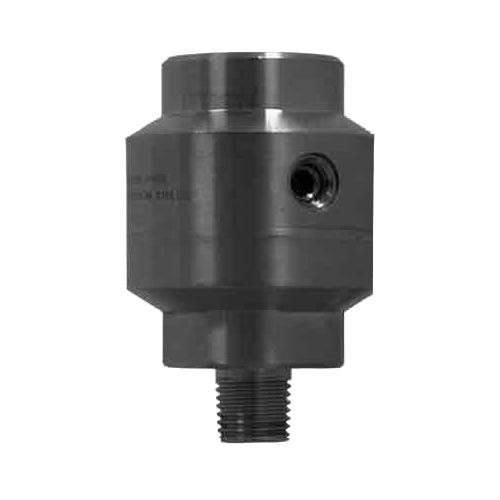

Winters #40 SEAL 1/4" X 1/2" F X M D40976
(No reviews yet)
Write a Review
Write a Review
U.S. Winter instruments
Winters #40 SEAL 1/4" X 1/2" F X M D40976
$365.28
- Brand
- U.S. Winter instruments
- SKU:
- D40976
- UPC:
- 6.28311E+11
Features:
- Compact (one piece), lightweight and economical
- ASME B40.100 compliant
- RoHS compliant
- CRN registered
Applications:
- Offers protection for pressure instruments (gauges and transmitters) from corrosive, contaminated or viscous media
- Ideally suited for applications where space limitations exist
| Housing | AISI 316 SS |
| Diaphragm | AISI 316L SS, welded |
| Minimum Operating Pressure | 30 psi (200 kPa) |
| Maximum Operating Pressure | 1,000 psi (6,900 kPa) |
| Gauge Connection | 1/4", NPTF |
| Process Connection | 1/2" NPTM |
| Process Temperature | -49?F to 302?F (-45?C to 150?C) |
