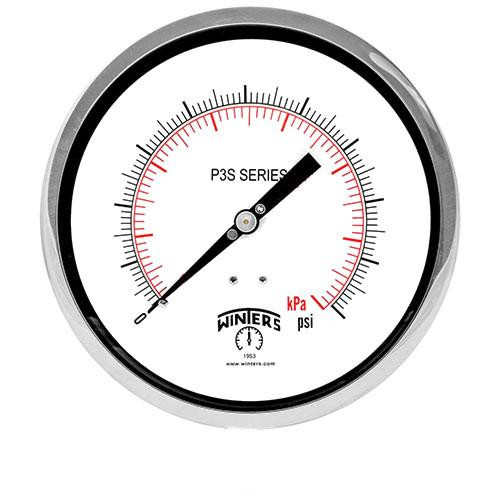

Winters 6" DIAL, 0-1000 PSI/KPA, 1/2" BK. CONN., ST/ST P3S6107B
(No reviews yet)
Write a Review
Write a Review
U.S. Winter instruments
Winters 6" DIAL, 0-1000 PSI/KPA, 1/2" BK. CONN., ST/ST P3S6107B
$523.21
- Brand
- U.S. Winter instruments
- SKU:
- P3S6107B
- UPC:
- 6.28311E+11
Description:
Winters, P3S6107B, P3S 6", 0/1,000 PSI/kPa, 1/2" SS Back Connection Pressure Gauge
Features:
- 6" Dial Size
- 1/2" NPT Connection
- Heavy duty, highly accurate aluminum case gauge
- ?0.5% accuracy
- Brass internals
- -40?F to 150?F (-40?C to 65?C) Ambient/Process Temperature
- Large, easy-to-read dial
- ASME B 40.100 compliant
- IP52 Enclosure Rating
- CRN registered
- Use on air, steam, oil, fresh water, boiler and control room
- 5 year warranty
Specification
| Pressure Range | 0-1,000 PSI/kPa |
| Dial | 6" (150mm) white aluminum with black and red markings |
| Case | Aluminum painted black |
| Front Flange | SS |
| Back Flange | Steel |
| Lens | Glass |
| Ring | SS, polished |
| Socket | 316L SS |
| Connection | 1/4? NPT for ranges up to 600 PSI (4,137 kPa) |
| Bourdon Tube | 316L SS |
| Movement | 304 SS |
| Pointer | Aluminum, anodized black, micrometer adjustable |
| Welding | 316L SS TIG Argonarc |
| Over-Pressure Limit | 30% for pressures up to 600 PSI (4,137 kPa) 25% for pressures over 600 PSI to 1,400 PSI (4,137 kPa to 9,653 kPa) 15% for pressures over 1,400 PSI (9,653 kPa) |
| Working Pressure | Maximum 75% of full scale value |
| Ambient/Process Temperature | -40?F to 150?F (-40?C to 65?C) |
| Accuracy | ?0.5% ANSI/ASME Grade 2A |
| Enclosure Rating | IP52 |
0 Reviews Hide Reviews Show Reviews
U.S. Winter instruments
Winters 6" DIAL, 0-600 PSI/KPA, 1/2" BK. CONN., ST/ST. P3S6106B
$523.21
Winters, P3S6106B, P3S 6", 0/600 PSI/kPa, 1/4" SS Back Connection Pressure GaugeFeatures:6" Dial Size1/4" NPT ConnectionHeavy duty, highly accurate aluminum case gauge?0.5% accuracyBrass...
U.S. Winter instruments
Winters 6" DIAL, 0-5000 PSI/KPA, 1/2" BK. CONN., ST/ST P3S6111B
$575.49
6" DIAL, 0-5000 PSI/KPA, 1/2" BK. CONN., ST/ST
U.S. Winter instruments
Winters 6" DIAL, 0-3000 PSI/KPA, 1/2" BK. CONN., ST/ST P3S6110B
$575.49
Winters, P3S6110B, P3S 6", 0/3,000 PSI/kPa, 1/2" SS Back Connection Pressure GaugeFeatures:6" Dial Size1/2" NPT ConnectionHeavy duty, highly accurate aluminum case gauge?0.5% accuracyBrass...
U.S. Winter instruments

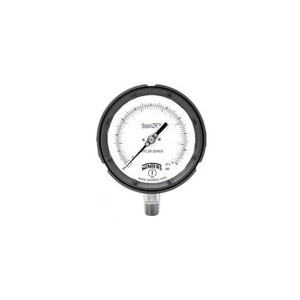

Winters 0-1000 PSI/KPA 1/2" NPT ST/ST PPC5070ZR
