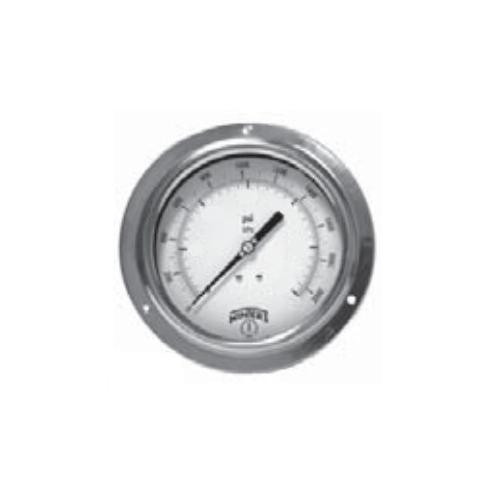

Winters 6" DIAL, 0/15 PSI/KPA, 1/4" BACK, FRONT FLANGE P3S6083B
(No reviews yet)
Write a Review
Write a Review
U.S. Winter instruments
Winters 6" DIAL, 0/15 PSI/KPA, 1/4" BACK, FRONT FLANGE P3S6083B
$450.20
- Brand
- U.S. Winter instruments
- SKU:
- P3S6083B
- UPC:
- 6.28E+11
Intended for non-clogging installations. Use on air, steam, oil, fresh water. Boilers, control rooms and chillers.
Features:
- Heavy duty, highly accurate aluminum case gauge
- ?0.5% accuracy
- Brass internals
- Large, easy-to-read dial
- ASME B40.100 compliant
| Pressure Range | 0/15 psi/kPa |
| Dial | 6" (115mm) white aluminum with black and red markings |
| Case | Aluminum painted black |
| Front Flange | SS, polished |
| Back Flange | Steel, painted black (optional) |
| Lens | Glass |
| Ring | SS, polished |
| Socket | Brass |
| Connection | 1/4" NPT |
| Connection | Back |
| Bourdon Tube | Phosphor bronze |
| Movement | Brass |
| Pointer | Aluminum, anodized black, micrometer adjustable |
| Welding | Tin/copper alloy |
| Over-pressure Limit | 30% |
| Working Pressure | Maximum 75% of full scale value |
| Ambient/Process Temperature | -40 deg F to 150 deg F (-40 deg C to 65 deg C) |
| Accuracy | ?0.5% ANSI/ASME Grade 2A |
| Enclosure Rating | IP52 |
