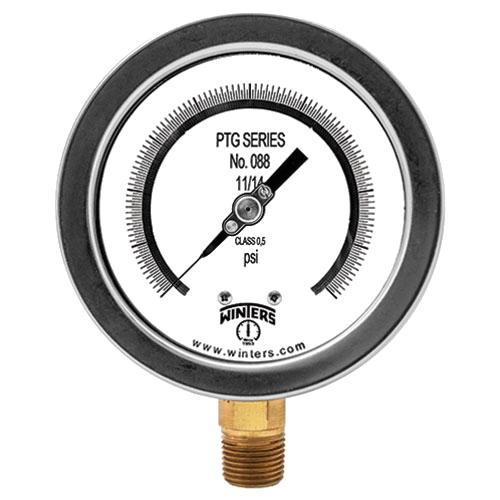

Winters 6" TEST GAUGE 0-3000 PSI 1/2" NPT BTTM PTG2012
(No reviews yet)
Write a Review
Write a Review
U.S. Winter instruments
Winters 6" TEST GAUGE 0-3000 PSI 1/2" NPT BTTM PTG2012
$969.00
- Brand
- U.S. Winter instruments
- SKU:
- PTG2012
Winters, PTG2012, PTG 6" Dial, 0/3,000 PSI, 1/2" NPT Bottom SS Pressure Test Gauge
Features:
- Highly accurate: ±0.25% for 6" (150mm) complete with calibration certificate traceable to NIST standards
- Mirrored anti-parallax dial
- Knife-edge pointer
- Protective carrying and storage case available
- ASME B40.100 compliant
- CRN registered
- 5 year warranty
Applications:
- Designed to be used where accuracy and repeatability are of prime importance
- Used in laboratories and instrument testing facilities
| Dial Size | 6" (150mm) |
| Range | 0/3,000 PSI |
| Case | AISI 304 SS |
| Lens | Polycarbonate |
| Ring | AISI 304 SS |
| Socket | 316 SS |
| Connection | 1/2" NPT bottom |
| Bourdon Tube | 316 SS |
| Movement | AISI 304 SS temperature compensated |
| Pointer | Aluminum, anodized black, micrometer adjustable, knife-edge |
| Welding | Silver alloy (TIG for 316 SS wetted parts) |
| Over-Pressure Limit | 30% of full scale value |
| Working Pressure | Maximum 75% of full scale value |
| Calibration Conditions | 68°F (±5.4°F), 20°C (±3°C) for ambient and process temperatures at atmospheric pressure |
| Ambient/Process Temperature | -4°F to 150°F (-20°C to 65°C) |
| Accuracy | ±0.25% ANSI/ASME Grade 3A |
| Enclosure Rating | IP65 |
