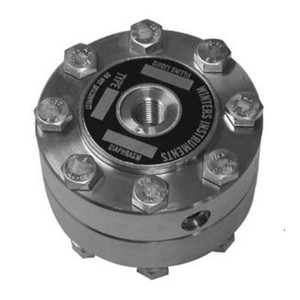

Winters #70 SEAL 316L ST/ST 1/4" NPT TOP D70950
$375.98
- Brand
- U.S. Winter instruments
- SKU:
- D70950
- UPC:
- 6.28311E+11
Where the process fluid is corrosive or viscous and would clog instrument internals/solidify within the pressure gauge, switch or transmitter.
Features:
- Two piece construction and designed to withstand even the most severe process applications
- "Continuous use" seals - backing plate will prevent diaphragm from rupturing if pressure sensing instrument fails. Pressure will be held until instrument is replaced
- Diaphragm is separable for servicing
- Standard diaphragm is constructed of AISI 316L stainless steel and welded to the upper chamber of the seal for pressures 30 psi (200 kPa) and above
- ASME B40.100 compliant
| Housing | 316L SS |
| Diaphragm | 316L SS |
| Construction | Two piece construction |
| Gasket Material | Buna N |
| Connection | 1/4" NPTF |
| Process Temperature | -22 deg F to 212 deg F (-30 deg C to 100 deg C) |
