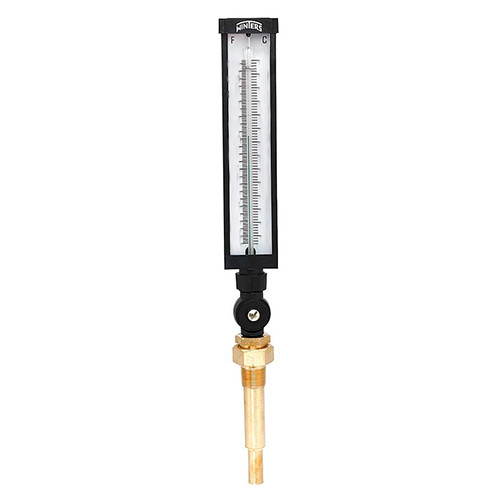

Winters ALUMINUM CASE 9", RANGE: 30/180 F&C TIM104A
(No reviews yet)
Write a Review
Write a Review
U.S. Winter instruments
Winters ALUMINUM CASE 9", RANGE: 30/180 F&C TIM104A
$114.68
- Brand
- U.S. Winter instruments
- SKU:
- TIM104A
- UPC:
- 6.28311E+11
Winters TIM104A Offers
Features
- 3.5" (90mm) and 6" (150mm) stem
- Available in aluminum or Valox? (9") case
- Organic filled tube (magnifying)
- Dual scale (?F & ?C)
- Adjustable angle connection and 360? case rotation for easy installation
- Graphite filled bulb chamber for maximum heat conduction
- ASME B40.200 and ASTM E2511 compliant
- CAN/CGSB-14.4-M88 compliant
- 5 year warranty
Applications
- New construction
- Plumbing
- Water Lines
- Boilers
- Heating
- Ventilation
- Air Conditioning
- Lead Free Version for portable water systems
Winters TIM104A Specifications
| Stem | 30 to 180?F (0 to 80?C) |
| Scale | 9" Aluminum Case, impact resistant |
| Lens | Glass |
| Connection | 3/4" NPT with thermowell 1 1/4" - 18 UNF swivel nut (no thermowell) |
| Scales | Aluminum, painted white with black markings |
| Bulb Chamber | Tapered cast aluminum with graphite fill |
| Tube and Sensing Liquid | Glass (magnifying), organic green fluid (other colours optional) |
| Adjustment | Fully adjustable |
| Thermowell | TIM: 3/4" Brass, separable socket (SS optional) |
| Accuracy | ?1% |
| Enclosure Rating | IP54 |
