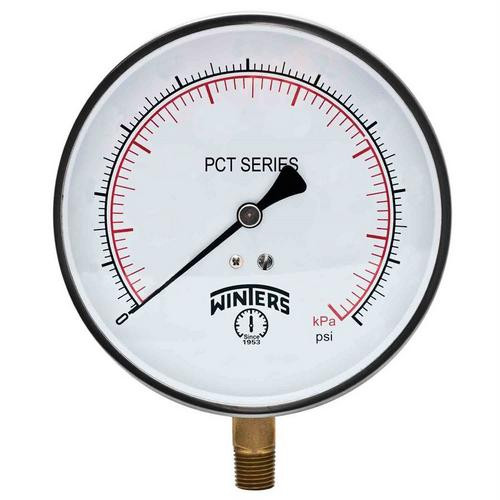

Winters CONTRACTOR 4.5" 0-600 PSI/KPA 1/4" BTM PCT331
(No reviews yet)
Write a Review
Write a Review
U.S. Winter instruments
Winters CONTRACTOR 4.5" 0-600 PSI/KPA 1/4" BTM PCT331
$43.63
- Brand
- U.S. Winter instruments
- SKU:
- PCT331
- UPC:
- 6.28E+11
Features:
- Economical 4.5" (115mm) stainless steel case gauge
- Brass wetted parts
- ?1% accuracy
- Zero adjustment screw
- 1/4"; NPT
- Restricted orifice
- ASME B40.100 compliant
- CRN registered
Applications:
- Most commercial air, water and steam services (with syphon)
| Scale value | 0/600 psi/kPa |
| Dial | 4.5"; (115mm) white aluminum with black and red markings |
| Case | 304 SS |
| Lens | Acrylic |
| Ring | 304 SS |
| Socket | Brass |
| Connection | 1/4" NPT standard |
| Bourdon Tube Brass | Phosphor bronze |
| Movement | Brass |
| Pointer | Aluminum, anodized black, recalibrator screw |
| Welding | Silver solder |
| Over-pressure Limit | 25% of full scale value |
| Working Pressure | Maximum 75% of full scale value |
| Ambient/Process Temperature | -40?F to 200?F (-40?C to 93?C) |
| Accuracy | ?1% ANSI/ASME Grade 1A |
| Enclosure Rating | IP52 |
