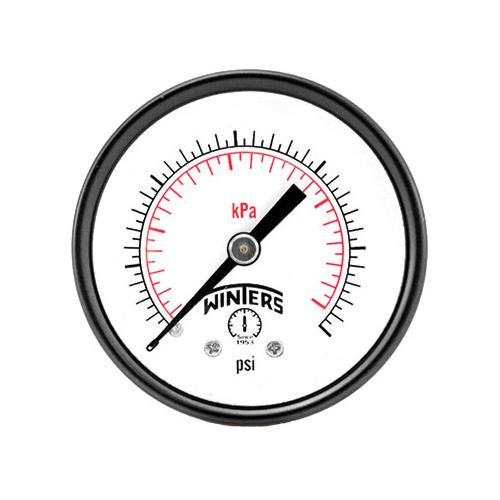

Winters ECONOMY 2.5" 0-400 PSI/KPA 1/4" NPT BACK PEM3412
(No reviews yet)
Write a Review
Write a Review
U.S. Winter instruments
Winters ECONOMY 2.5" 0-400 PSI/KPA 1/4" NPT BACK PEM3412
$22.59
- Brand
- U.S. Winter instruments
- SKU:
- PEM3412
- UPC:
- 6.28E+11
- Availability:
- In Stock
Features:
- Most economical, all-purpose pressure gauge
- Friction bezel rings
- Black steel case
- Brass or lead free brass wetted parts
- ASME B40.100 compliant
- ?3-2-3% accuracy
- CRN registered
Applications:
- Plumbing, heating, air conditioning, pneumatic, hydraulic, water tanks, air compressors, OEM
| Case | Steel, painted black |
| Dial | 2.5" (63mm) |
| Lens | Acrylic |
| Ring | Steel, chrome plated |
| Socket | Brass |
| Connection | 1/4" NPT standard |
| Bourdon Tube | Phosphor bronze |
| Movement | Brass |
| Pointer | Aluminum, black |
| Welding | Silver alloy |
| Over-Pressure Limit | 25% of full scale value |
| Working Pressure | Maximum 75% of full scale value |
| Ambient/Process Temperature | -40degF to 150degF (-40degC to 65degC) |
| Accuracy | ?3-2-3% ANSI/ASME Grade B |
| Enclosure Rating | IP52 |
