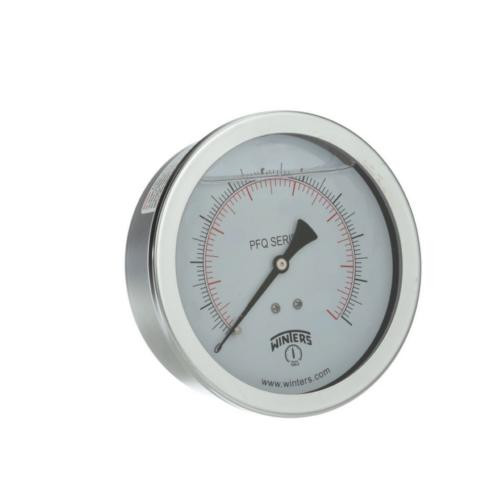

Winters FILLED/BR 2.5" 0-600 PSI/KPA 1/4" NPT BACK PFQ908

(No reviews yet) Write a Review

$46.37

Current Stock:

Quantity:

Adding to cart… The item has been added

Features

Applications

Ideal for pumps, compressors, hydraulic presses, machinery, pneumatic equipment and motors in harsh environments
Use where harmful vibration and pulsation are present
Lead free version for potable water systems

Range	0/600 psi/kPa
Dial	2.5" white aluminum with black and red markings
Case	AISI 304 SS
Lens	Polycarbonate
Ring	AISI 304 SS, Crimp-On
Socket	Brass
Connection	1/4" Back (CB)
Fill Liquid	Glycerin
Bourdon Tube	1.5" (40mm) 2" (50mm): Phosphor bronze C or coil shaped for brass socket SS C or coil shaped for 316 SS socket 2.5" (63mm) 4" (100mm): Phosphor bronze or lead free phosphor bronze C or coil shaped for brass socket, AISI 316 SS C or coil shaped for 316 SS socket
Movement	Brass
Pointer	Aluminum, anodized black
Welding	Brass: Silver alloy, 316SS:TIG
Over-Pressure Limit	25% for pressures up to 1,450 psi (9,998 kPa), 15% for pressures over 1,450 psi (9,998 kPa)
Socket Gasket	Buna N for two-piece internal socket seal
Fill Plug	Buna N
Lens Ring Gasket	Silicone rubber
Working Pressure	Maximum 75% of full scale value
Ambient/Process Temperature	Dry: -40 to 200?F (-40 to 93?C) Glycerin Filled: -4 to 150?F (-20 to 65?C)
Accuracy	1.5" (40mm) 2" (50mm): ?2.5% of full scale value 2.5" (63mm) 4" (100mm): ?1.5% of full scale value
Enclosure Rating	IP65
