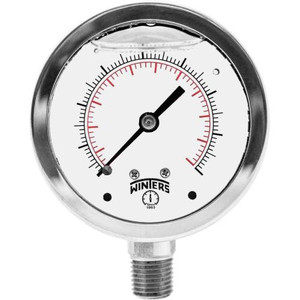

Winters FILLED/SS 1.5" 0-2000 PSI/KPA, 1/8" NPT BTM PFQ1211
(No reviews yet)
Write a Review
Write a Review
U.S. Winter instruments
Winters FILLED/SS 1.5" 0-2000 PSI/KPA, 1/8" NPT BTM PFQ1211
$143.67
- Brand
- U.S. Winter instruments
- SKU:
- PFQ1211
- UPC:
- 6.28311E+11
Features with all optional accessories:
- Pulsation resistant, liquid filled stainless steel case
- Glycerin filled standard
- Stainless steel
- Crimp-On bezel
- ASME B40.100 compliant
- CRN registered
- Lead free version NSF-61-372 certified
Applications:
- Ideal for pumps, compressors, hydraulic presses, machinery, pneumatic equipment and motors in harsh environments
- Use where harmful vibration and pulsation are present
| Dial | 1.5" (40mm) |
| Scale Order | Dual |
| Connection | 1/8" Bottom |
| Bourdon Tube | Phosphor bronze C or coil shaped |
| Range | 0/2,000 PSI/KPA |
| Movement | Stainless steel |
| Accuracy | 1.5" (40mm) ?2.5% of full scale value |
| Case | AISI 304 SS |
| Ring | AISI 304 SS, Crimp-On |
| Socket | OT 58 Stainless steel |
| Welding | Silver alloy |
| Lens | Polycarbonate |
| Pointer | Aluminum, anodized black |
| Over-pressure Limit | 25% for pressures up to 1,450 psi (9,998 kPa), 15% for pressures over 1,450 psi (9,998 kPa) |
| Socket Gasket | Buna N for two-piece internal socket seal |
| Fill Plug | Buna N |
| Fill Liquid | Glycerin |
| Lens Ring Gasket | Silicone rubber |
| Working Pressure | Maximum 75% of full scale value |
| Ambient/Process Temperature | Dry: -40?F to 200?F (-40?C to 93?C) Glycerin Filled: -4?F to 150?F (-20?C to 65?C) |
| Enclosure Rating | IP65 |
