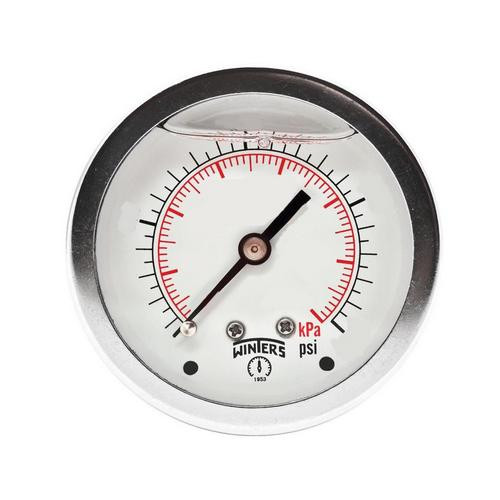

Winters FILLED/SS 2.5" 0-1500 PSI/KPA 1/4" NPT BACK PFQ180
(No reviews yet)
Write a Review
Write a Review
U.S. Winter instruments
Winters FILLED/SS 2.5" 0-1500 PSI/KPA 1/4" NPT BACK PFQ180
$109.91
- Brand
- U.S. Winter instruments
- SKU:
- PFQ180
- UPC:
- 6.28E+11
Winters PFQ180 Offers
Features
- Pulsation resistant, liquid filled stainless steel case
- Glycerin filled standard
- Brass, lead free brass or stainless steel internals
- Crimp-On bezel
- Lead free version NSF-61-372 certified
- CRN registered
Applications
- Ideal for pumps, compressors, hydraulic presses, machinery, pneumatic equipment and motors in harsh environments
- Use where harmful vibration and pulsation are present
- Lead free version for potable water systems
Winters PFQ180 Specifications
| Range | 0/1,500 psi/kPa |
| Dial | 2.5" (63 mm) white aluminum with black and red markings |
| Case | AISI 304 SS |
| Lens | Polycarbonate |
| Ring | AISI 304 SS, crimp-on |
| Socket | AISI 316 SS with restrictor screw (dual scale only) |
| Connection | 0.44"-20 SAE, lower mount |
| Fill Liquid | Glycerin |
| Bourdon Tube | C-shaped for pressures up to and including 600 psi, spiral for pressures above 1,000 psi |
| Movement | C-shaped for pressures up to and including 600 psi, spiral for pressures above 1,000 psi |
| Pointer | Aluminum, anodized black |
| Welding | Brass: Silver alloy 316 SS: TIG |
| Over-Pressure Limit | 25% for pressures up to 1,450 psi (9,998 kPa) 15% for pressures over 1,450 psi (9,998 kPa) |
| Socket Material | Buna N for 2-piece internal socket seal |
| Fill Plug | Buna N |
| Lens Ring Gasket | Silicone rubber |
| Working Pressure | Maximum 75% of full-scale value |
| Ambient/Process Temperature | Dry: -40 to 200?F (-40 to 93?C) Glycerin filled: -4 to 150?F (-20 to 65?C) |
| Accuracy | ?1.5% of full scale |
| Enclosure Rating | IP65 |
0 Reviews Hide Reviews Show Reviews
U.S. Winter instruments

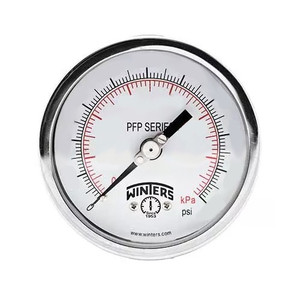

Winters FILLED/SS 2.5" 0-1500 PSI/KPA 1/4" NPT BACK PFP934
