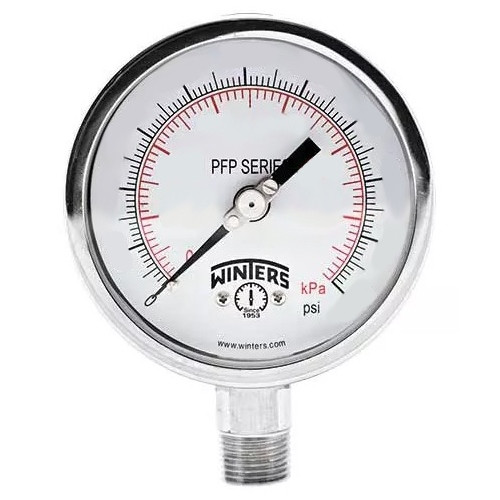

Winters FILLED/SS 2.5" 0-160 PSI/KPA 1/4" NPT BOTTOM PFP825

(No reviews yet) Write a Review

$117.82

Brand: U.S. Winter instruments
SKU:: PFP825
UPC:: 6.28E+11

Current Stock:

Quantity:

Adding to cart… The item has been added

Description
0 Reviews

Winters PFP825 Offers

The premium stainless-steel, liquid-filled pressure gauges with 2.5" (6.4 cm) dial come with a 0.25" (0.64 cm) bottom connection. They are highly accurate with an accuracy rate of ?1.5% of full-scale value. These gauges feature stainless-steel internals and a case that protects against vibration and pulsation. Dual scale.

Features

Liquid-filled, stainless-steel case protects against vibration and pulsation
Highly accurate
Back, bottom or panel mounted
Under and overload stops
Ventable plug on 2.5" to 4.5" (6.35 to 11.4 cm) stainless-steel and 4.5" (11.4 cm) brass bottom mount and 4" (10.2 cm) stainless-steel back mount gauges
Stainless steel or brass wetted parts
Restrictor screw standard on dual scale (optional on single scale)
Dry case available
ASME B40.100 compliant (EN837-1 available)
RoHS compliant (SS internals only)
CRN registered
5-year warranty

Applications

Outdoor And Severe Ambient And Process Conditions
Use Where Harmful Vibration And Pulsation Are Present
Hydraulic Equipment, Pressure Washers, Oil Field Equipment, Pumps, Compressors And Process Systems

Winters PFP825 Specifications

Range	0/160 psi/kPa
Connection	0.25" (0.64 cm) bottom
Dial	2.5" (63 mm) white aluminum with black and red markings
Case	AISI 304 SS
Lens	Polycarbonate, high pressure BSP(G) and HP: tempered safety glass
Ring	AISI 304 SS
Fill Liquid	Glycerin
Working Pressure	Maximum 75% of full-scale value
Ambient/Process Temperature	-4 to 150?F (-20 to 65?C)
Accuracy	?1.5% of full scale
