Winters FILLED/SS 2.5" 0-160 PSI/KPA 1/4" NPT BOTTOM PFQ122
(No reviews yet)
Write a Review
Write a Review
U.S. Winter instruments
Winters FILLED/SS 2.5" 0-160 PSI/KPA 1/4" NPT BOTTOM PFQ122
$95.13
- Brand
- U.S. Winter instruments
- SKU:
- PFQ122
- UPC:
- 6.28E+11
Winters PFQ122
Features
- Pulsation resistant, liquid filled stainless steel case
- Glycerin filled standard
- Brass, lead free brass or stainless steel internals
- Crimp-On bezel
- Lead free version NSF-61-372 certified
- CRN registered
Applications
- Ideal for pumps, compressors, hydraulic presses, machinery, pneumatic equipment and motors in harsh environments
- Use where harmful vibration and pulsation are present
- Lead free version for potable water systems
Winters PFQ122 Specifications
| Range | 0/160 psi/kPa |
| Dial | 2.5" white aluminum with black and red markings |
| Case | AISI 304 SS |
| Lens | Polycarbonate |
| Ring | AISI 304 SS, Crimp-On |
| Socket | Brass |
| Connection | 1/4" Bottom |
| Fill Liquid | Glycerin |
| Bourdon Tube | 1.5" (40mm) 2" (50mm): Phosphor bronze C or coil shaped for brass socket SS C or coil shaped for 316 SS socket 2.5" (63mm) 4" (100mm): Phosphor bronze or lead free phosphor bronze C or coil shaped for brass socket, AISI 316 SS C or coil shaped for 316 SS socket |
| Movement | SS |
| Pointer | Aluminum, anodized black |
| Welding | Brass: Silver alloy, 316SS:TIG |
| Over-Pressure Limit | 25% for pressures up to 1,450 psi (9,998 kPa), 15% for pressures over 1,450 psi (9,998 kPa) |
| Socket Gasket | Buna N for two-piece internal socket seal |
| Fill Plug | Buna N |
| Lens Ring Gasket | Silicone rubber |
| Working Pressure | Maximum 75% of full scale value |
| Ambient/Process Temperature | Dry: -40 to 200?F (-40 to 93?C) Glycerin Filled: -4 to 150?F (-20 to 65?C) |
| Accuracy | 1.5" (40mm) 2" (50mm): ?2.5% of full scale value 2.5" (63mm) 4" (100mm): ?1.5% of full scale value |
| Enclosure Rating | IP65 |
0 Reviews Hide Reviews Show Reviews
U.S. Winter instruments
Winters FILLED/SS 2.5" 0-160 PSI/KPA 1/4" NPT BOTTOM PFP825
$117.82
Winters PFP825 Offers The premium stainless-steel, liquid-filled pressure gauges with 2.5" (6.4 cm) dial come with a 0.25" (0.64 cm) bottom connection. They are highly accurate with an accuracy rate...
U.S. Winter instruments
Winters FILLED/SS 4" 0-160 PSI/KPA 1/4" NPT BOTTOM PFP645
$242.49
Winters PFP645 Offers The premium stainless-steel, liquid-filled pressure gauges with 2.5" (6.4 cm) dial come with a 0.25" (0.64 cm) bottom connection. They are highly accurate with an accuracy rate...
U.S. Winter instruments

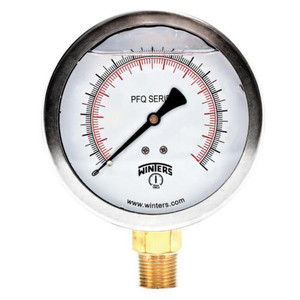

Winters FILLED/BR 2.5" 0-160 PSI/KPA 1/4" NPT BOTTOM PFQ805
