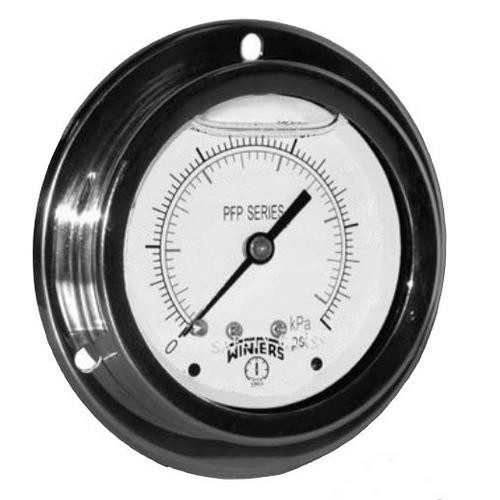

Winters FILLED/SS 2.5" 0-60 PSI/KPA, 1/4" NPT LOWER BACK, FF, GLYCERIN FILLED PFP3782
(No reviews yet)
Write a Review
Write a Review
U.S. Winter instruments
Winters FILLED/SS 2.5" 0-60 PSI/KPA, 1/4" NPT LOWER BACK, FF, GLYCERIN FILLED PFP3782
$96.32
- Brand
- U.S. Winter instruments
- SKU:
- PFP3782
- UPC:
- 6.28E+11
Winters, PFP3782, PFP Premium Stainless Steel Liquid Filled Gauge for Panel Mounting, 2.5", 1/4" Back, Dual Scale, 0/60 psi/kPa.
Features:
- Liquid filled stainless steel case protects against extreme vibration and pulsation
- Lower back mount with front flange for panel mounting
- Bayonet ring
- Stainless steel wetted parts
- Restricted orifice standard on dual scale
- Safety glass
- ASME B40.100 compliant (EN837-1 available)
- CRN registered
Applications:
- Outdoor and severe ambient and process conditions
- Use where harmful vibration and pulsation are present
- Panel builders in hydraulic equipment, oil field equipment, pumps, compressors and process industries
| Scale value | 0/15 psi/kPa |
| Dial | 2.5" (63mm) white aluminum with black and red markings |
| Case | AISI 304 SS |
| Lens | Safety glass |
| Ring | AISI 304 SS |
| Socket | 316L SS welded one-piece socket |
| Connection | 1/4" NPT |
| Bourdon Tube Brass | 316L SS, drawn seamless |
| Movement | 304 SS |
| Pointer | Aluminum, anodized black |
| Welding | Laser welded socket to case |
| Fill Liquid | Glycerin |
| Over-pressure Limit | 25% of full scale value |
| Working Pressure | Maximum 75% of full scale value |
| Ambient Temperature | Dry: -40?F to 250?F (-40?C to 120?C) Glycerin Filled: -4?F to 150?F (-20?C to 65?C) |
| Process Temperature | C to 65?C) Process Temperature -40?F to 250?F (-40?C to 120?C) |
| Accuracy | ?1.5% of full scale value |
| Enclosure Rating | NEMA 4X/IP66, EN60529-1 (IEC529-1) |
