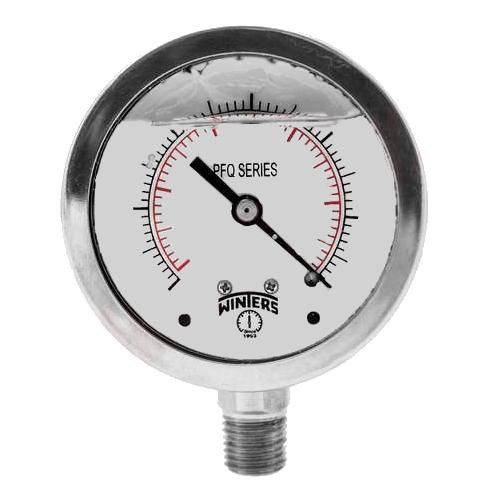

Winters FILLED/SS 2.5" 0/6000 PSI/KPA 1/4"NPT BOTTOM PFQ139
(No reviews yet)
Write a Review
Write a Review
U.S. Winter instruments
Winters FILLED/SS 2.5" 0/6000 PSI/KPA 1/4"NPT BOTTOM PFQ139
$98.96
- Brand
- U.S. Winter instruments
- SKU:
- PFQ139
- UPC:
- 6.28E+11
Description:
Features with all optional accessories:
- Pulsation resistant, liquid filled stainless steel case
- Glycerin filled standard
- Stainless steel internals
- Crimp-On bezel
- ASME B40.100 compliant
- CRN registered
- Lead free version NSF-61-372 certified
Applications:
- Ideal for pumps, compressors, hydraulic presses, machinery, pneumatic equipment and motors in harsh environments
- Use where harmful vibration and pulsation are present
Specification
| Dial | 2.5" (63mm) white aluminum with black and red markings |
| Scale Order | Dual |
| Connection | 1/4" NPT |
| Bourdon Tube | 2.5" (63mm): AISI 316 SS C or coil shaped |
| Range | 0/6,000 PSI/KPA |
| Movement | SS |
| Accuracy | 2.5" +- 1.5% of full scale value |
| Case | AISI 304 SS |
| Ring | AISI 304 SS, Crimp-On |
| Socket | AISI 316 SS |
| Movement | SS |
| Welding | TIG |
| Lens | Polycarbonate |
| Pointer | Aluminum, anodized black |
| Over-pressure Limit | 25% for pressures up to 1,450 psi (9,998 kPa), 15% for pressures over 1,450 psi (9,998 kPa) |
| Socket Gasket | Buna N for two-piece internal socket seal |
| Fill Plug | Buna N |
| Fill Liquid | Glycerin |
| Lens Ring Gasket | Silicone rubber |
| Working Pressure | Maximum 75% of full scale value |
| Ambient/Process Temperature | Dry: -40?F to 200?F (-40?C to 93?C) Glycerin Filled: -4?F to 150?F (-20?C to 65?C) |
| Enclosure Rating | IP65 |
