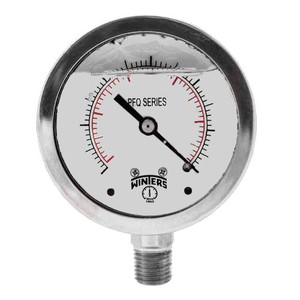

Winters FILLED/SS 2.5" 0/7500 PSI/KPA 1/4"NPT BOTTOM PFQ144
(No reviews yet)
Write a Review
Write a Review
![Winters FILLED/SS 2.5" 0/7500 PSI/KPA 1/4"NPT BOTTOM PFQ144 Winters FILLED/SS 2.5" 0/7500 PSI/KPA 1/4"NPT BOTTOM PFQ144](https://cdn11.bigcommerce.com/s-6sbwq2o2/images/stencil/500x659/products/254753/310670/PFQ106__68506.1654614779.jpg?c=2)
U.S. Winter instruments
Winters FILLED/SS 2.5" 0/7500 PSI/KPA 1/4"NPT BOTTOM PFQ144
MSRP:
Now:
$86.11
Was:
(You save
)
- Brand
- U.S. Winter instruments
- SKU:
- PFQ144
- UPC:
- 6.28E+11
Description
Features with all optional accessories:
- Pulsation resistant, liquid filled stainless steel case
- Glycerin filled standard
Description
Features with all optional accessories:
- Pulsation resistant, liquid filled stainless steel case
- Glycerin filled standard
- Stainless steel internals
- Crimp-On bezel
- ASME B40.100 compliant
- CRN registered
- Lead free version NSF-61-372 certified
Applications:
- Ideal for pumps, compressors, hydraulic presses, machinery, pneumatic equipment and motors in harsh environments
- Use where harmful vibration and pulsation are present
Specification
Dial | 2.5" (63mm) white aluminum with black and red markings |
Scale Order | Dual |
Connection | 1/4" NPT |
Bourdon Tube | 2.5" (63mm): AISI 316 SS C or coil shaped |
Range | 0/7,500 PSI/KPA |
Movement | SS |
Accuracy | 2.5" +- 1.5% of full scale value |
Case | AISI 304 SS |
Ring | AISI 304 SS, Crimp-On |
Socket | AISI 316 SS |
Movement | SS |
Welding | TIG |
Lens | Polycarbonate |
Pointer | Aluminum, anodized black |
Over-pressure Limit | 25% for pressures up to 1,450 psi (9,998 kPa), 15% for pressures over 1,450 psi (9,998 kPa) |
Socket Gasket | Buna N for two-piece internal socket seal |
Fill Plug | Buna N |
Fill Liquid | Glycerin |
Lens Ring Gasket | Silicone rubber |
Working Pressure | Maximum 75% of full scale value |
Ambient/Process Temperature | Dry: -40°F to 200°F (-40°C to 93°C) Glycerin Filled: -4°F to 150°F (-20°C to 65°C) |
Enclosure Rating | IP65 |
