Winters FILLED/SS 4" 0-5,000 PSI/KPA 1/4"NPT BACK PFP1255
(No reviews yet)
Write a Review
Write a Review
U.S. Winter instruments
Winters FILLED/SS 4" 0-5,000 PSI/KPA 1/4"NPT BACK PFP1255
$280.06
- Brand
- U.S. Winter instruments
- SKU:
- PFP1255
- UPC:
- 6.28311E+11
Description
Winters, PFP1255, PFP Premium Stainless Steel Liquid Filled Gauge, Dual Scale, Dial 4", 1/4" Back, SS, PFP Gauge, Dual Scale, 1/4" Back, SS, 0/5,000 psi/kPa
Outdoor and severe ambient and process conditions. Use where harmful vibration and pulsation are present. Hydraulic equipment, oil field equipment, pumps, compressors and process industries.
Features:
- Liquid filled stainless steel case protects against vibration and pulsation
- Bayonet ring
- Highly accurate
- Back mounted
- Under and overload stops
- Ventable plug on 4" stainless steel back mount
- Stainless steel
- Dry case available
- ASME B40.100 compliant (EN837-1 available)
Specification
| Pressure Range | 0/5,000 psi/kPa |
| Dial | 4" (100mm) white aluminum with black and red markings |
| Case | AISI 304 SS |
| Lens | Polycarbonate |
| Ring | AISI 304 SS |
| Socket | 316L SS. Welded one-piece socket |
| Connection | 1/4" NPT |
| Bourdon Tube | 316L SS, drawn seamless |
| Movement | 304 SS (under and overload stops 4" to 6") |
| Pointer | Aluminum, anodized black, micrometer adjustable |
| Welding | Laser welded socket to case |
| Fill Liquid | Glycerin |
| Over-pressure Limit | 15% |
| Socket Gasket | Welded (no gasket) |
| Fill Plug | Buna N (silicone rubber option) |
| Lens Ring Gasket | Buna N (silicone rubber option) |
| Working Pressure | Maximum 75% of full scale value |
| Ambient Temperature | Dry: -40?F to 250?F (-40?C to 120?C) Glycerin Filled: -4?F to 150?F (-20?C to 65?C) |
| Process Temperature | -40?F to 250?F (-40?C to 120?C) |
| Accuracy | ?1% ANSI/ASME Grade 1A |
| Enclosure Rating | NEMA 4X/IP66, EN60529-1 (IEC529-1) |
0 Reviews Hide Reviews Show Reviews
U.S. Winter instruments
Winters FILLED/SS 4" 0-5,000 PSI/KPA 1/4" NPT BOTTOM PFP2304
$254.62
Winters PFP2304 Offers The premium stainless-steel, liquid-filled pressure gauges with 2.5" (6.4 cm) dial come with a 0.25" (0.64 cm) bottom connection. They are highly accurate with an accuracy rate...
U.S. Winter instruments

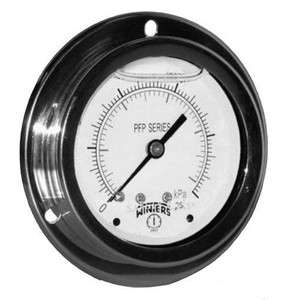

Winters FILLED/SS 2.5" 0-5,000 PSI/KPA, 1/4" NPT LOWER BACK, FF, GLYCERIN FILLED PFP3793
