Winters FILLED/SS 4" 30"/0/15 PSI/KPA 1/4" NPT BTM PFP1036
(No reviews yet)
Write a Review
Write a Review
U.S. Winter instruments
Winters FILLED/SS 4" 30"/0/15 PSI/KPA 1/4" NPT BTM PFP1036
$254.62
- Brand
- U.S. Winter instruments
- SKU:
- PFP1036
- UPC:
- 6.28311E+11

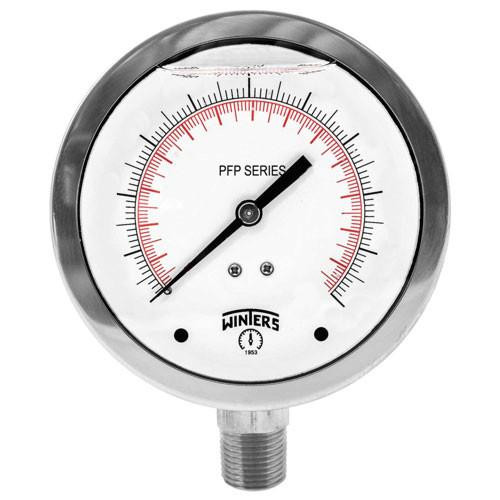

Winters, PFP1036, PFP Premium Stainless Steel Liquid Filled Gauge, 30"/0/15 psi/kPa, 4", 1/4" NTP Bottom, Dual Scale, SS.
Features:
- Liquid filled stainless steel case protects against vibration and pulsation
- Bayonet ring
- Highly accurate
- Under and overload stops
- ASME B40.100 compliant
- CRN registered
Applications:
- Ideally suited for fire sprinkler systems and fire fighting equipment
| Dial | 4" (100mm) white aluminum with black and red markings |
| Case | AISI 304 SS |
| Lens | Polycarbonate, High pressure BSP(G) and HP: Tempered safety glass |
| Ring | AISI 304 SS |
| Socket | 316L SS |
| Connection | 1/4" NPT standard |
| Bourdon Tube | 316 SSL, drawn seamless |
| Movement | 304 SS |
| Pointer | Aluminum, anodized black, micrometer adjustable |
| Welding | Laser welded socket to case |
| Fill Liquid | Glycerin |
| Over-pressure Limit | 25% |
| Socket Gasket | Welded (no gasket) |
| Fill Plug | Buna N |
| Lens Ring Gasket | Buna N |
| Working Pressure | Maximum 75% of full scale value |
| Ambient Temperature | Glycerin filled: -4degF to 150degF (-20degC to 65degC) |
| Process Temperature | -40degF to 200degF (-40degC to 93degC) |
| Accuracy | ?1% ANSI/ASME Grade 1A |
| Enclosure Rating | NEMA 4X/IP66, EN60529-1 (IEC529-1) |
