Winters FILLED/SS 4" 30"/0/200 PSI/KPA 1/2" NPT BTM PFP1050
(No reviews yet)
Write a Review
Write a Review
U.S. Winter instruments
Winters FILLED/SS 4" 30"/0/200 PSI/KPA 1/2" NPT BTM PFP1050
$254.62
- Brand
- U.S. Winter instruments
- SKU:
- PFP1050
- UPC:
- 6.28E+11

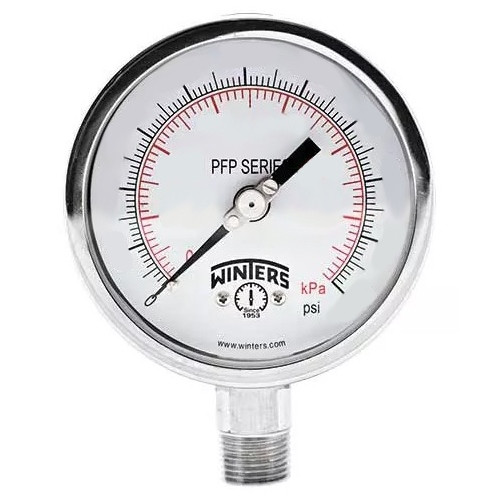

Winters, PFP1050, PFP Premium Stainless Steel Liquid Filled Gauge, Dual Scale, Dial 4", 1/2" Bottom, SS Internals, 30"/0/200 psi/kPa
Outdoor and severe ambient and process conditions. Use where harmful vibration and pulsation are present. Hydraulic equipment, oil field equipment, pumps, compressors and process industries.
Features:
- Liquid filled stainless steel case protects against vibration and pulsation
- Bayonet ring
- Highly accurate
- Bottom mounted
- Under and overload stops
- Ventable plug on 4" stainless steel bottom mount
- Stainless steel internals
- ASME B40.100 compliant
| Pressure Range | 30"/0/200 psi/kPa |
| Dial | 4" (100mm) white aluminum with black and red markings |
| Case | AISI 304 SS |
| Lens | Polycarbonate |
| Ring | AISI 304 SS |
| Socket | 316L SS. Welded one-piece socket |
| Connection | 1/2" NPT |
| Bourdon Tube | 316L SS, drawn seamless |
| Movement | 304 SS (under and overload stops 4" to 6") |
| Pointer | Aluminum, anodized black, micrometer adjustable |
| Welding | Laser welded socket to case |
| Fill Liquid | Glycerin |
| Over-pressure Limit | 25% |
| Socket Gasket | Welded (no gasket) |
| Fill Plug | Buna N (silicone rubber option) |
| Lens Ring Gasket | Buna N (silicone rubber option) |
| Working Pressure | Maximum 75% of full scale value |
| Ambient Temperature |
|
| Process Temperature | -40degF to 250degF (-40degC to 120degC) |
| Accuracy | +/-1% ANSI/ASME Grade 1A |
| Enclosure Rating | NEMA 4X/IP66, EN60529-1 (IEC529-1) |
